DSP1-L2-DC3V-F footprint, schematic symbol and 3D model by Panasonic

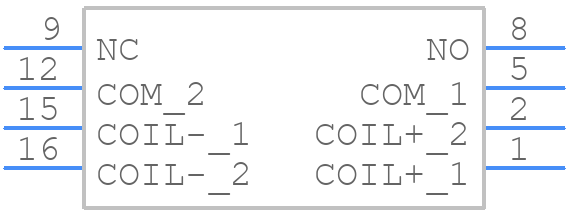

Symbol

click to zoom

PCB Footprints

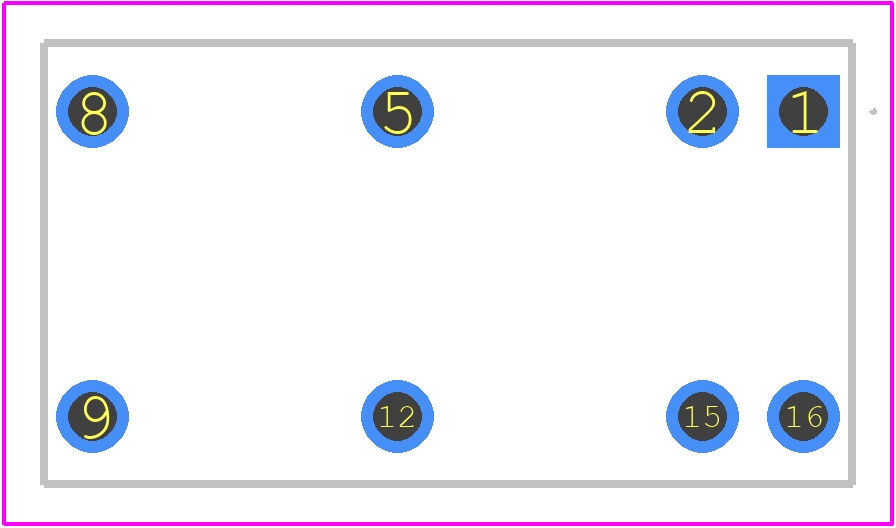

DSP1-L2-DC3V-F - Panasonic PCB footprint - Other - Other - DSP1-L2-DC3V-F-1

click to zoom

3D Models

DSP1-L2-DC3V-F - Panasonic - 3D model - Other - DSP1-L2-DC3V-F-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DSP1-L2-DC3V-F
Part Number DSP1-L2-DC3V-F
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - DSP1-L2-DC3V-F-1
Released Date Sep 19, 2023
Last Modified Date Jan 21, 2026 4:45 PM UTC
Pinout / Pin List Click Here (Member Only)

DSP1-L2-DC3V-F Details

Manufacturer Part Number:
DSP1-L2-DC3V-F
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Factory Lead Time:
16 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
5.5
Additional Feature:
RELEASE TIME WITHOUT DIODE
Body Breadth:
11 mm
Body Height:
10.5 mm
Body Length or Diameter:
20.2 mm
Coil Current(DC)-Max:
0.1 A
Coil Operate Voltage(DC):
2.4 V
Coil Power:
300 mW
Coil Release Voltage(DC):
2.4 V
Coil Resistance:
30 Ω
Coil Voltage(DC)-Max:
3 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
5A@380VAC
Contact Current(AC)-Max:
5 A
Contact Current(DC)-Max:
5 A
Contact (DC) Max Rating R Load:
5A@125VDC
Contact Voltage(AC)-Max:
380 V
Contact Voltage(DC)-Max:
125 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
10 ms
Operating Temperature-Max:
65 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
20.2mm x 11mm x 10.5mm
Reference Standard:
CSA; TUV; UL
Relay Action:
LATCHED
Relay Function:
DPST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
5 ms
Sealing:
WATER PROOF
Surface Mount:
NO
Termination Type:
SOLDER

DSP1-L2-DC3V-F Frequently Asked Questions (FAQs)

Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To ensure the relay operates within its specified temperature range, consider the ambient temperature, PCB temperature, and heat generation from surrounding components. Implement proper thermal management, such as heat sinks or thermal vias, and ensure adequate airflow.
The recommended drive circuit typically includes a transistor or FET to switch the relay coil. Panasonic provides a reference circuit in their datasheet or application notes. It's essential to ensure the drive circuit can provide the required coil voltage and current.
To handle the inrush current, consider using a soft-start circuit or an inrush current limiter to reduce the initial current surge. This helps prevent voltage drops and ensures reliable relay operation.
In high-vibration or high-shock environments, ensure the relay is properly secured to the PCB using recommended mounting methods. Consider using additional mechanical support or potting the relay to prevent damage from vibration or shock.
