DSP1-L2-DC6V-F footprint, schematic symbol and 3D model by Panasonic

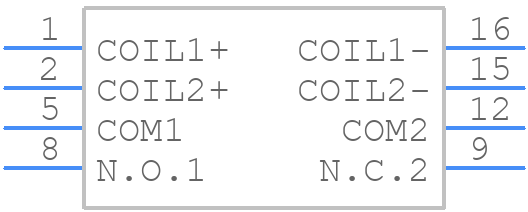

Symbol

click to zoom

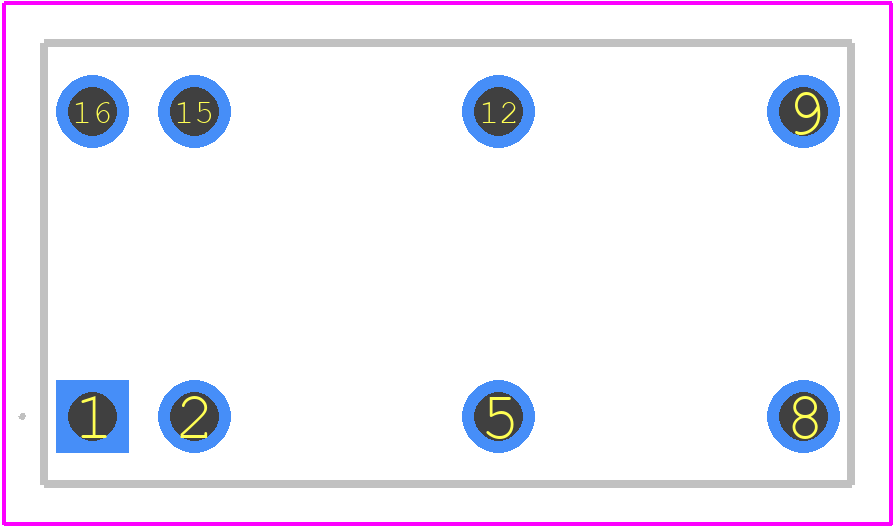

PCB Footprints

DSP1-L2-DC6V-F - Panasonic PCB footprint - Other - Other - DSP1-L2-DC6V-F-2

click to zoom

3D Models

DSP1-L2-DC6V-F - Panasonic - 3D model - Other - DSP1-L2-DC6V-F-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DSP1-L2-DC6V-F
Part Number DSP1-L2-DC6V-F
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - DSP1-L2-DC6V-F-2
Released Date Jan 21, 2026
Last Modified Date Mar 30, 2026 10:02 AM UTC
Pinout / Pin List Click Here (Member Only)

DSP1-L2-DC6V-F Details

Manufacturer Part Number:
DSP1-L2-DC6V-F
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Factory Lead Time:
16 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
5.5
Additional Feature:
RELEASE TIME WITHOUT DIODE
Body Breadth:
11 mm
Body Height:
10.5 mm
Body Length or Diameter:
20.2 mm
Coil Current(DC)-Max:
0.05 A
Coil Operate Voltage(DC):
4.8 V
Coil Power:
300 mW
Coil Release Voltage(DC):
4.8 V
Coil Resistance:
120 Ω
Coil Voltage(DC)-Max:
6 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
5A@380VAC
Contact Current(AC)-Max:
5 A
Contact Current(DC)-Max:
5 A
Contact (DC) Max Rating R Load:
5A@125VDC
Contact Voltage(AC)-Max:
380 V
Contact Voltage(DC)-Max:
125 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
10 ms
Operating Temperature-Max:
65 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
20.2mm x 11mm x 10.5mm
Reference Standard:
CSA; TUV; UL
Relay Action:
LATCHED
Relay Function:
DPST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
5 ms
Sealing:
WATER PROOF
Surface Mount:
NO
Termination Type:
SOLDER

DSP1-L2-DC6V-F Frequently Asked Questions (FAQs)

Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To ensure reliable operation in high-temperature environments, it's crucial to consider the relay's power consumption, PCB thermal design, and heat dissipation. Panasonic recommends using a heat sink or thermal pad to dissipate heat, and ensuring good airflow around the relay.
Panasonic recommends using a transistor-driven circuit with a base resistor and a diode for back-EMF protection. The specific drive circuit design will depend on the application's requirements, but Panasonic provides examples in their application notes.
To handle the inrush current, it's recommended to use a soft-start circuit or an inrush current limiter to reduce the initial current surge. This can help prevent voltage drops and ensure reliable operation.
In high-vibration environments, it's essential to ensure the relay is securely mounted to the PCB and that the PCB is properly secured to the chassis. Additionally, consider using a relay with a higher vibration rating or adding vibration dampening materials to the PCB.

Trust Checks

Community Provided

System Verified

Community Approved

DSP1-L2-DC6V-F Overview

Use the download button to access the DSP1-L2-DC6V-F schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DSP1-, or try a keyword search, such as Power/Signal Relays
