DSP2a-L2-DC5V footprint, schematic symbol and 3D model by Panasonic

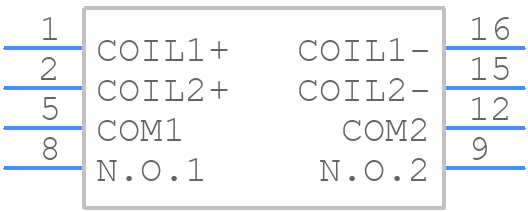

Symbol

click to zoom

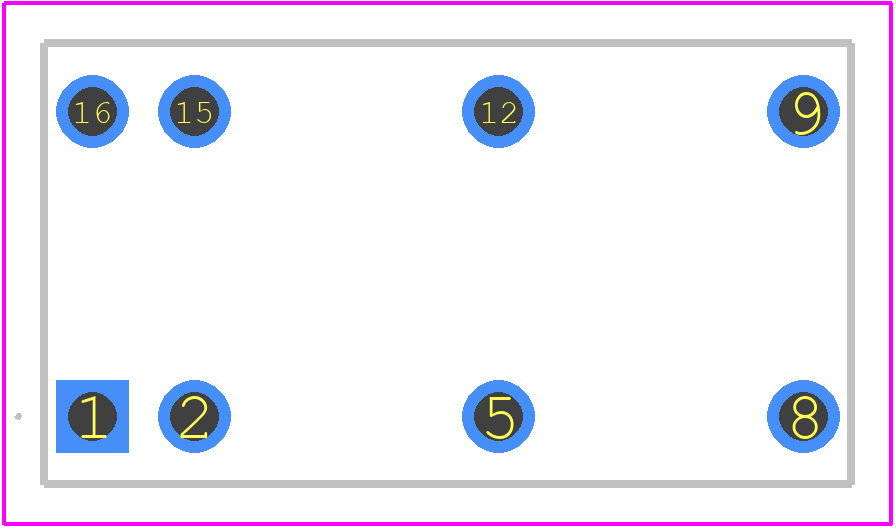

PCB Footprints

DSP2a-L2-DC5V - Panasonic PCB footprint - Other - Other - DSP2a-L2-DC5V-3

click to zoom

3D Models

DSP2a-L2-DC5V - Panasonic - 3D model - Other - DSP2a-L2-DC5V-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DSP2a-L2-DC5V
Part Number DSP2a-L2-DC5V
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - DSP2a-L2-DC5V-3
Released Date Jan 8, 2021
Last Modified Date Mar 30, 2026 4:21 AM UTC
Pinout / Pin List Click Here (Member Only)

DSP2a-L2-DC5V Details

Manufacturer Part Number:
DSP2A-L2-DC5V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Factory Lead Time:
16 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
5.5
Additional Feature:
RELEASE TIME WITHOUT DIODE
Body Breadth:
11 mm
Body Height:
10.5 mm
Body Length or Diameter:
20.2 mm
Coil Current(DC)-Max:
0.06 A
Coil Operate Voltage(DC):
4 V
Coil Power:
300 mW
Coil Release Voltage(DC):
4 V
Coil Resistance:
83 Ω
Coil Voltage(DC)-Max:
5 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
5A@380VAC
Contact Current(AC)-Max:
5 A
Contact Current(DC)-Max:
5 A
Contact (DC) Max Rating R Load:
5A@125VDC
Contact Voltage(AC)-Max:
380 V
Contact Voltage(DC)-Max:
125 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
10 ms
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
20.2mm x 11mm x 10.5mm
Reference Standard:
CSA; TUV; UL
Relay Action:
LATCHED
Relay Function:
DPST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
5 ms
Sealing:
WATER PROOF
Surface Mount:
NO
Termination Type:
SOLDER

DSP2a-L2-DC5V Frequently Asked Questions (FAQs)

Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper relay operation and minimize thermal and electrical stress.
Proper heat dissipation and thermal management are crucial. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the relay. Also, consider the ambient temperature and heat generated by surrounding components.
A suitable drive circuit should be used to ensure the relay is properly energized and de-energized. A recommended drive circuit typically includes a transistor or FET switch, a diode for back-EMF protection, and a current-limiting resistor.
Inrush current can be managed by using a soft-start circuit or an NTC thermistor to limit the initial current surge. Additionally, consider using a relay with a built-in inrush current limiter or a relay driver with built-in current limiting.
In high-vibration or high-shock environments, ensure the relay is securely mounted and consider using a relay with a higher vibration and shock rating. Also, use a relay with a sealed or encapsulated design to prevent ingress of contaminants.

Trust Checks

Community Provided

System Verified

Community Approved

DSP2a-L2-DC5V Overview

Use the download button to access the DSP2a-L2-DC5V schematic symbol, PCB footprint, and 3D model.
