DSP2a-L2-DC9V footprint, schematic symbol and 3D model by Panasonic

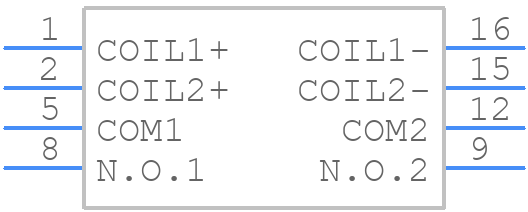

Symbol

click to zoom

PCB Footprints

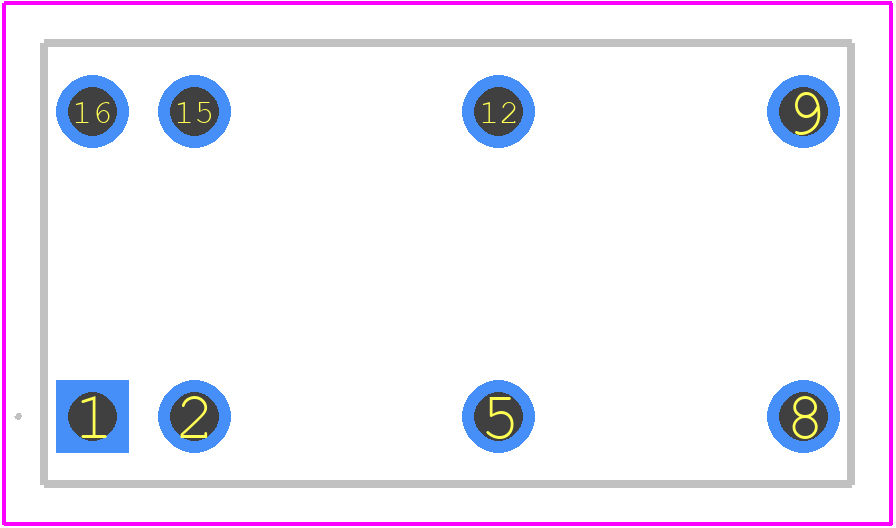

DSP2a-L2-DC9V - Panasonic PCB footprint - Other - Other - DSP2a-L2-DC9V-1

click to zoom

3D Models

DSP2a-L2-DC9V - Panasonic - 3D model - Other - DSP2a-L2-DC9V-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DSP2a-L2-DC9V
Part Number DSP2a-L2-DC9V
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - DSP2a-L2-DC9V-1
Released Date Jan 21, 2026
Last Modified Date Mar 30, 2026 4:20 AM UTC
Pinout / Pin List Click Here (Member Only)

DSP2a-L2-DC9V Details

Manufacturer Part Number:
DSP2A-L2-DC9V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Factory Lead Time:
16 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
5.5
Additional Feature:
RELEASE TIME WITHOUT DIODE
Body Breadth:
11 mm
Body Height:
10.5 mm
Body Length or Diameter:
20.2 mm
Coil Current(DC)-Max:
0.033 A
Coil Operate Voltage(DC):
7.2 V
Coil Power:
300 mW
Coil Release Voltage(DC):
7.2 V
Coil Resistance:
270 Ω
Coil Voltage(DC)-Max:
9 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
5A@380VAC
Contact Current(AC)-Max:
5 A
Contact Current(DC)-Max:
5 A
Contact (DC) Max Rating R Load:
5A@125VDC
Contact Voltage(AC)-Max:
380 V
Contact Voltage(DC)-Max:
125 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
10 ms
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
20.2mm x 11mm x 10.5mm
Reference Standard:
CSA; TUV; UL
Relay Action:
LATCHED
Relay Function:
DPST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
5 ms
Sealing:
WATER PROOF
Surface Mount:
NO
Termination Type:
SOLDER
