DSPIC30F2010AT-20I/SO - Microchip

DSPIC30F2010AT-20I/SO Details

• Manufacturer Part Number:

  DSPIC30F2010AT-20I/SO

• Part Life Cycle Code:

  Active Unconfirmed

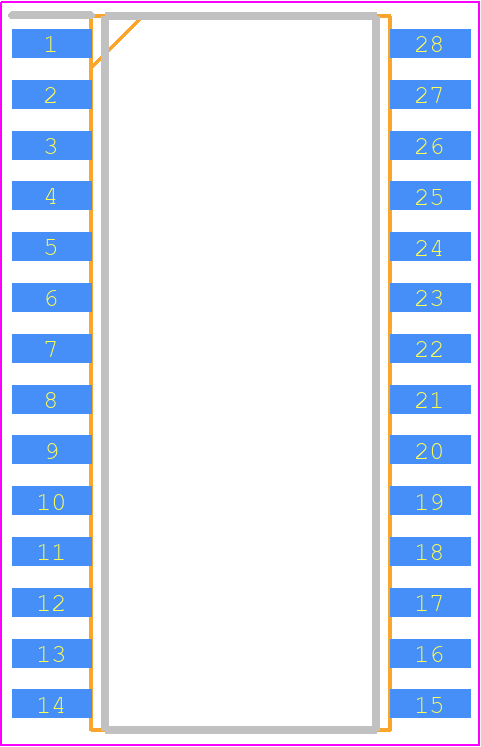

• Package Description:

  SOIC-28

• Country Of Origin:

  Thailand

• HTS Code:

  8542.31.00.35

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  5.8

• Has ADC:

  YES

• Barrel Shifter:

  YES

• Bit Size:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  25 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FLOATING POINT

• Integrated Cache:

  NO

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  R-PDSO-G28

• Length:

  17.9 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  3

• Number of Terminals:

  28

• Number of Timers:

  3

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,UNSPECIFIED

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• RAM (words):

  512

• ROM Programmability:

  FLASH

• Screening Level:

  TS 16949

• Seated Height-Max:

  2.65 mm

• Speed:

  30 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, CONTROLLER
