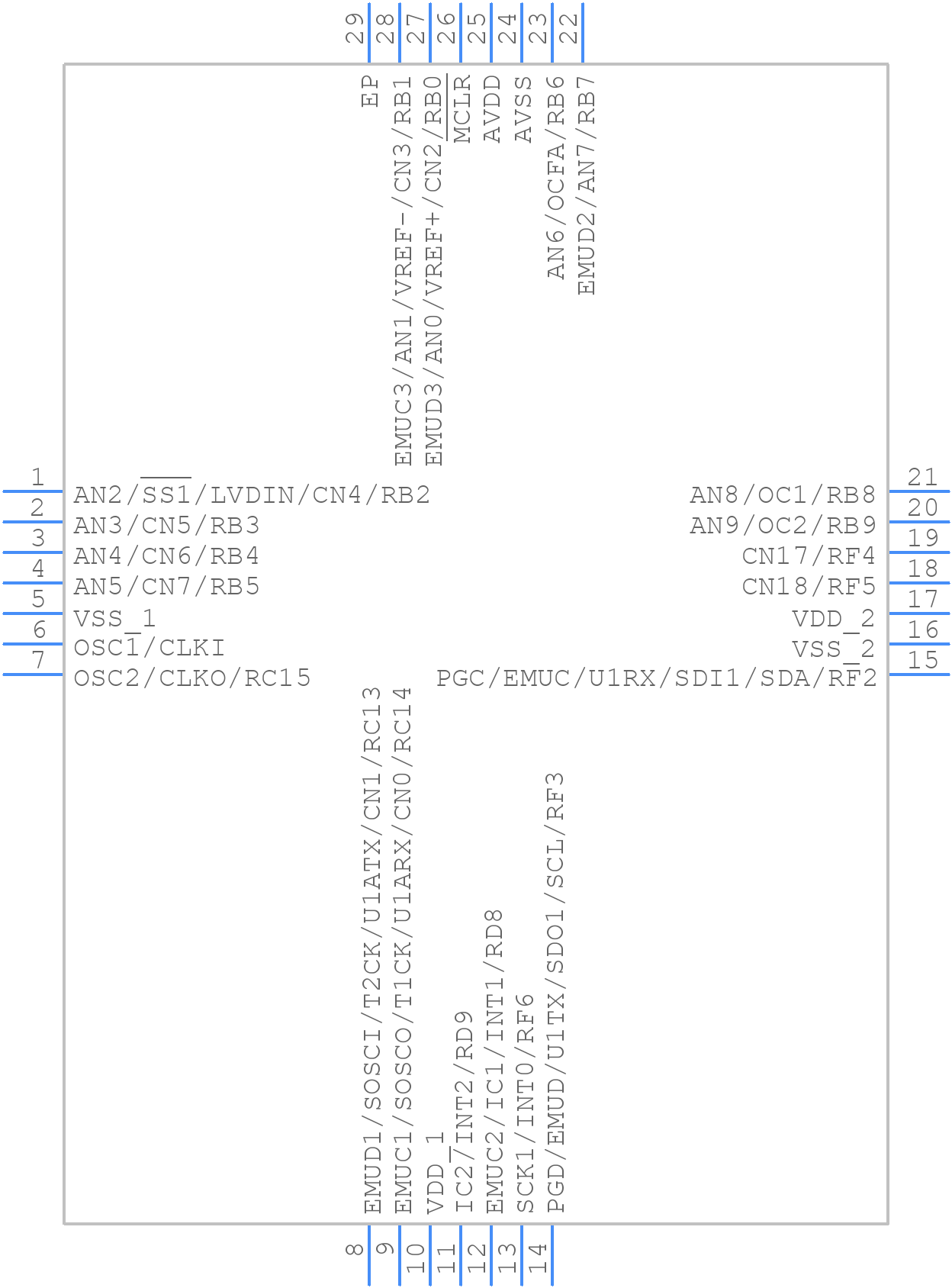

dsPIC30F2012-20I/ML - Microchip

dsPIC30F2012-20I/ML Details

• Manufacturer Part Number:

  DSPIC30F2012-20I/ML

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  6 X 6 MM, 0.90 MM HEIGHT, PLASTIC, MO-220, QFN-28

• Pin Count:

  28

• Manufacturer Package Code:

  VQFN-28

• Country Of Origin:

  Thailand

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.35

• Factory Lead Time:

  6 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8

• Additional Feature:

  ALSO OPERATES AT 2.5V SUPPLY AT 7.5MHZ

• Barrel Shifter:

  YES

• Bit Size:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  40 MHz

• Format:

  FIXED POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PQCC-N28

• JESD-609 Code:

  e3

• Length:

  6 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  28

• On Chip Program ROM Width:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC28,.24SQ,25

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• ROM Programmability:

  FLASH

• Screening Level:

  TS 16949

• Seated Height-Max:

  1 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  6 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, CONTROLLER
