dsPIC33CH256MP205T-I/PT - Microchip

Description: Digital Signal Processors & Controllers - DSP, DSC 16 Bit DSC, Dual Core, 256K Flash, 32K + 16K RAM, 100MHz, 48Pin, T&R

Download dsPIC33CH256MP205T-I/PT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

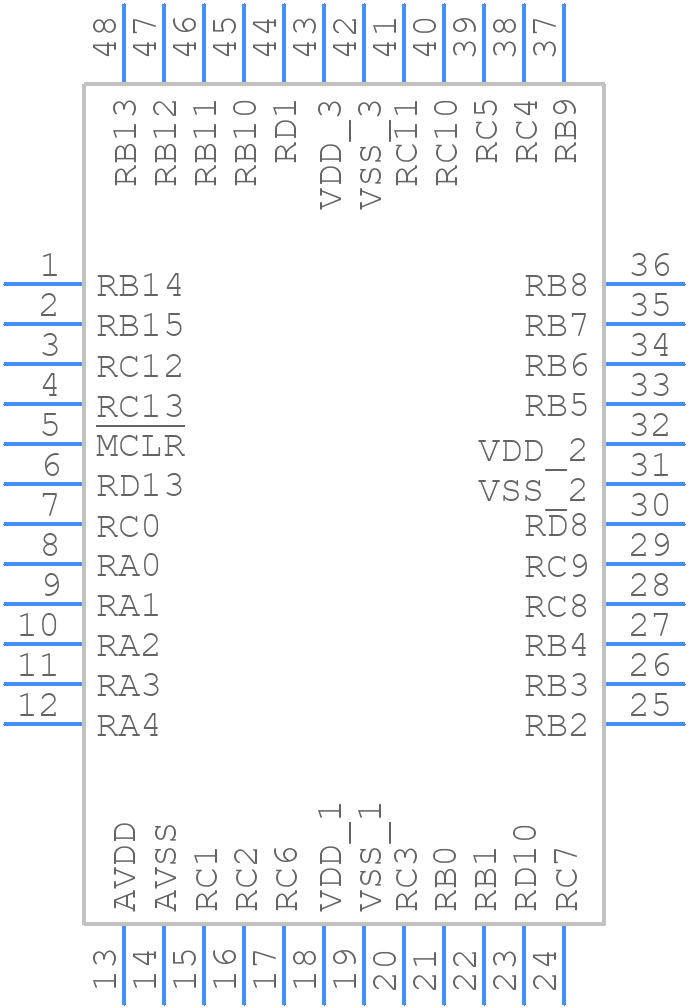

dsPIC33CH256MP205T-I/PT - Microchip - PCB symbol
click to zoom
PCB Footprints
dsPIC33CH256MP205T-I/PT - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead Plastic Thin Quad Flatpack (PT) - 7x7x1.0 mm Body [TQFP]
click to zoom
3D Models
dsPIC33CH256MP205T-I/PT - Microchip - 3D model - Quad Flat Packages - 48-Lead Plastic Thin Quad Flatpack (PT) - 7x7x1.0 mm Body [TQFP]
click to zoom

dsPIC33CH256MP205T-I/PT Details

  • Manufacturer Part Number:

    DSPIC33CH256MP205T-I/PT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    TQFP-48

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Barrel Shifter:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    64 MHz

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, CONTROLLER

dsPIC33CH256MP205T-I/PT Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the DSPIC33CH256MP205T-I/PT is 100 MHz, but it can be overclocked to 120 MHz with reduced voltage and temperature range.
  • The DSPIC33CH256MP205T-I/PT has a built-in watchdog timer (WDT) that can be enabled and configured using the WDTCON register. The WDT can be set to timeout after a specific period, and can be reset using the CLRWDT or SLEEP instructions.
  • Yes, the DSPIC33CH256MP205T-I/PT can operate with a power supply voltage between 2.2V and 3.6V. However, the maximum operating frequency may be reduced at lower voltage levels.
  • The UART module in the DSPIC33CH256MP205T-I/PT can be configured using the UxMODE, UxSTA, and UxBRG registers. The UART module supports asynchronous, synchronous, and IrDA modes, and can be configured for different baud rates, data bits, and stop bits.
  • Yes, the DSPIC33CH256MP205T-I/PT can be used with an external crystal oscillator. The microcontroller has a built-in phase-locked loop (PLL) that can be used to multiply the crystal frequency to generate the system clock.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

dsPIC33CH256MP205T-I/PT Overview

Use the download button to access the dsPIC33CH256MP205T-I/PT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like dsPIC, or try a keyword search, such as Digital Signal Processors
