Part Image

DSPIC33EP64GP504-I/PT - Microchip

Description: MCU 16-bit dsPIC RISC 64KB Flash 3.3V Automotive 44-Pin TQFP Tray

Download DSPIC33EP64GP504-I/PT Model

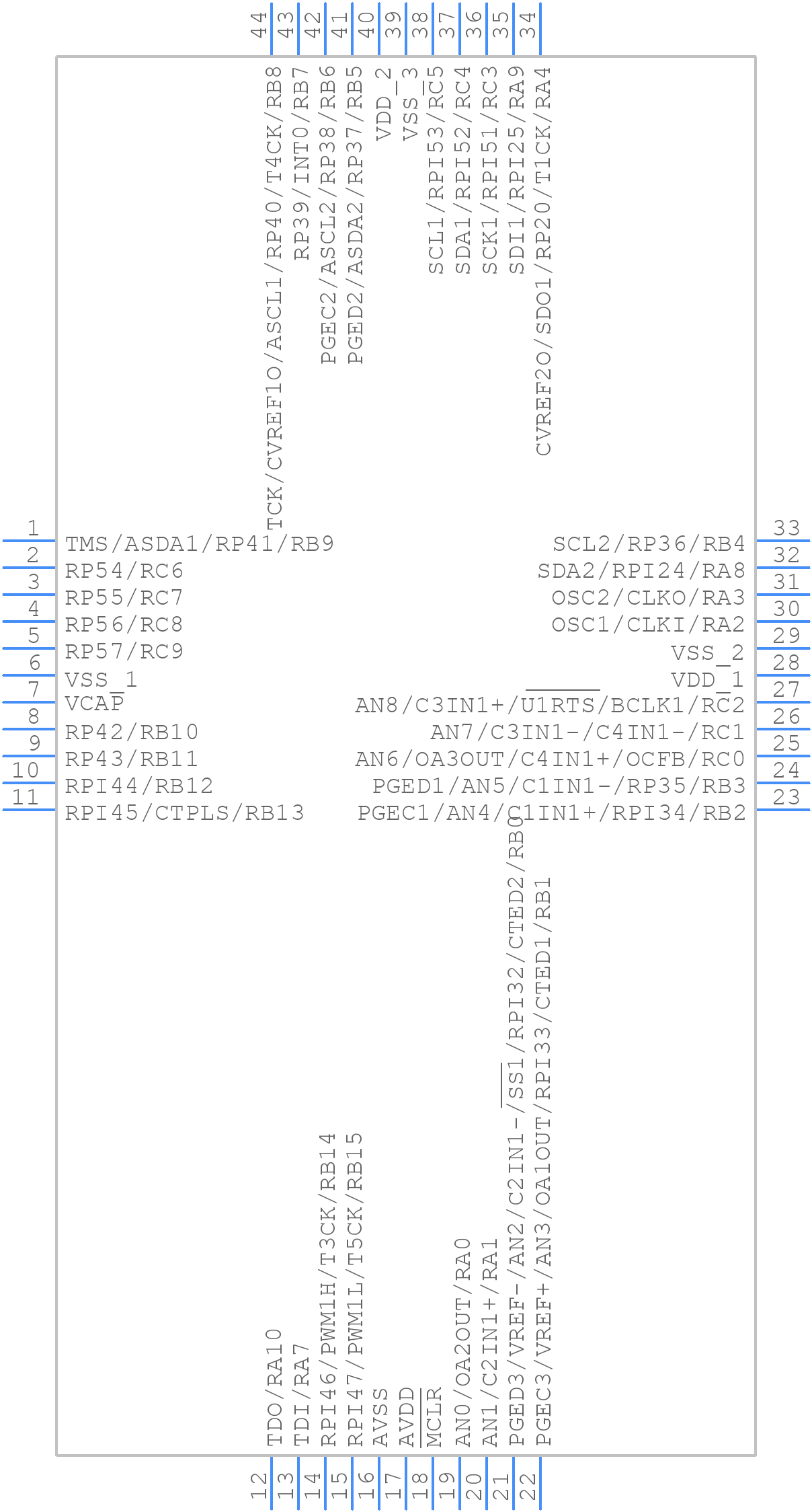

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DSPIC33EP64GP504-I/PT - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 44-Lead Plastic Thin Quad Flatpack (PT)
click to zoom
3D Models
DSPIC33EP64GP504-I/PT - Microchip  - 3D model - Quad Flat Packages - 44-Lead Plastic Thin Quad Flatpack (PT)
click to zoom

DSPIC33EP64GP504-I/PT Details

  • Manufacturer Part Number:

    DSPIC33EP64GP504-I/PT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    10 X 10 MM, 1 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, PLASTIC, TQFP-44

  • Pin Count:

    44

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24.61

  • Barrel Shifter:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    60 MHz

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    3

  • Number of Terminals:

    44

  • Number of Timers:

    5

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP44,.47SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (words):

    8192

  • ROM Programmability:

    FLASH

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    55 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, CONTROLLER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DSPIC33EP64GP504-I/PT Overview

Use the download button to access the DSPIC33EP64GP504-I/PT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSPIC, or try a keyword search, such as Microcontrollers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to DSPIC33EP64GP504-I/PT

Showing 0 results

DSPIC33EP64GP504-I/PT Alternates

Showing results

Image Part Number Model
Part Image DSPIC33EP64GP504T-I/PT Microchip Technology Inc

16-BIT, FLASH, 70 MHz, MICROCONTROLLER, PQFP44, 10 X 10 MM, 1 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, PLASTIC, TQFP-44

Part Image DSPIC33EP64GP504-I/PTVAO Microchip Technology Inc

Microcontroller, 16-Bit, FLASH, 70MHz, CMOS, PQFP44

Part Image DSPIC33EP64GP504T-I/PTVAO Microchip Technology Inc

Microcontroller, 16-Bit, FLASH, 70MHz, CMOS, PQFP44
