Part Image

DSS1NB32A102Q91A - Murata Electronics

Description: Feed Through Capacitors 1000pF 6A 100volts +/-10% -40+85C

Download DSS1NB32A102Q91A Model

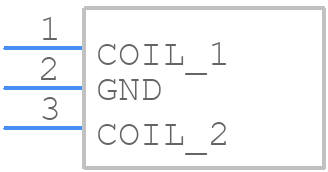

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

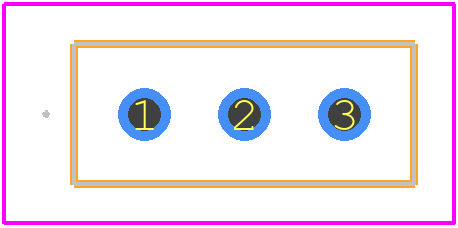

DSS1NB32A102Q91A - Murata Electronics PCB footprint - Other - Other - DSS1NB32A102Q91A-1
click to zoom
3D Models
DSS1NB32A102Q91A - Murata Electronics  - 3D model - Other - DSS1NB32A102Q91A-1
click to zoom

DSS1NB32A102Q91A Details

  • Manufacturer Part Number:

    DSS1NB32A102Q91A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • Risk Rank:

    1.67

  • YTEOL:

    7

  • Capacitance:

    1000 µF

  • Filter Type:

    FEED THROUGH CAPACITOR

  • Height:

    7.5 mm

  • Insulation Resistance-Min:

    1000 MΩ

  • Length:

    8.5 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    AMMO PACK

  • Rated Current:

    6 A

  • Rated Voltage:

    100 V

  • Width:

    3.5 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DSS1NB32A102Q91A Overview

Use the download button to access the DSS1NB32A102Q91A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSS1N, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
