DSS1NB32A682Q91A - Murata Electronics

Description: Feed Through Capacitors 6800 PF 100V

Download DSS1NB32A682Q91A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

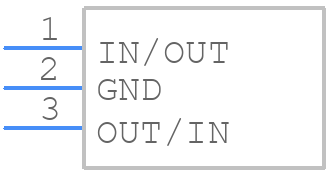

Symbol
DSS1NB32A682Q91A - Murata Electronics - PCB symbol
click to zoom

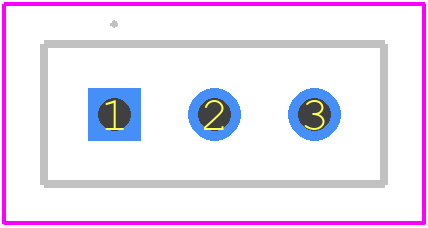

PCB Footprints
DSS1NB32A682Q91A - Murata Electronics PCB footprint - Other - Other - DSS1NB32A682Q91A-
click to zoom
3D Models
DSS1NB32A682Q91A - Murata Electronics - 3D model - Other - DSS1NB32A682Q91A-
click to zoom

DSS1NB32A682Q91A Details

  • Manufacturer Part Number:

    DSS1NB32A682Q91A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    2

  • Capacitance:

    6800 µF

  • Filter Type:

    FEED THROUGH CAPACITOR

  • Height:

    7.5 mm

  • Insulation Resistance-Min:

    1000 MΩ

  • Length:

    8.5 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    AMMO PACK

  • Rated Current:

    6 A

  • Rated Voltage:

    100 V

  • Width:

    3.5 mm

DSS1NB32A682Q91A Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 3.2mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.2mm between the pad and the solder mask.
  • The DSS1NB32A682Q91A is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). It is suitable for decoupling and filtering applications in high-frequency circuits.
  • Yes, the DSS1NB32A682Q91A is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability, high temperature, and vibration resistance.
  • The DSS1NB32A682Q91A has an operating temperature range of -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and consumer electronics.
  • The DSS1NB32A682Q91A has a moisture sensitivity level (MSL) of 1, which means it can withstand high humidity and moisture levels without compromising its performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DSS1NB32A682Q91A Overview

Use the download button to access the DSS1NB32A682Q91A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSS1N, or try a keyword search, such as Data Line Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
