DT13-08PD footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

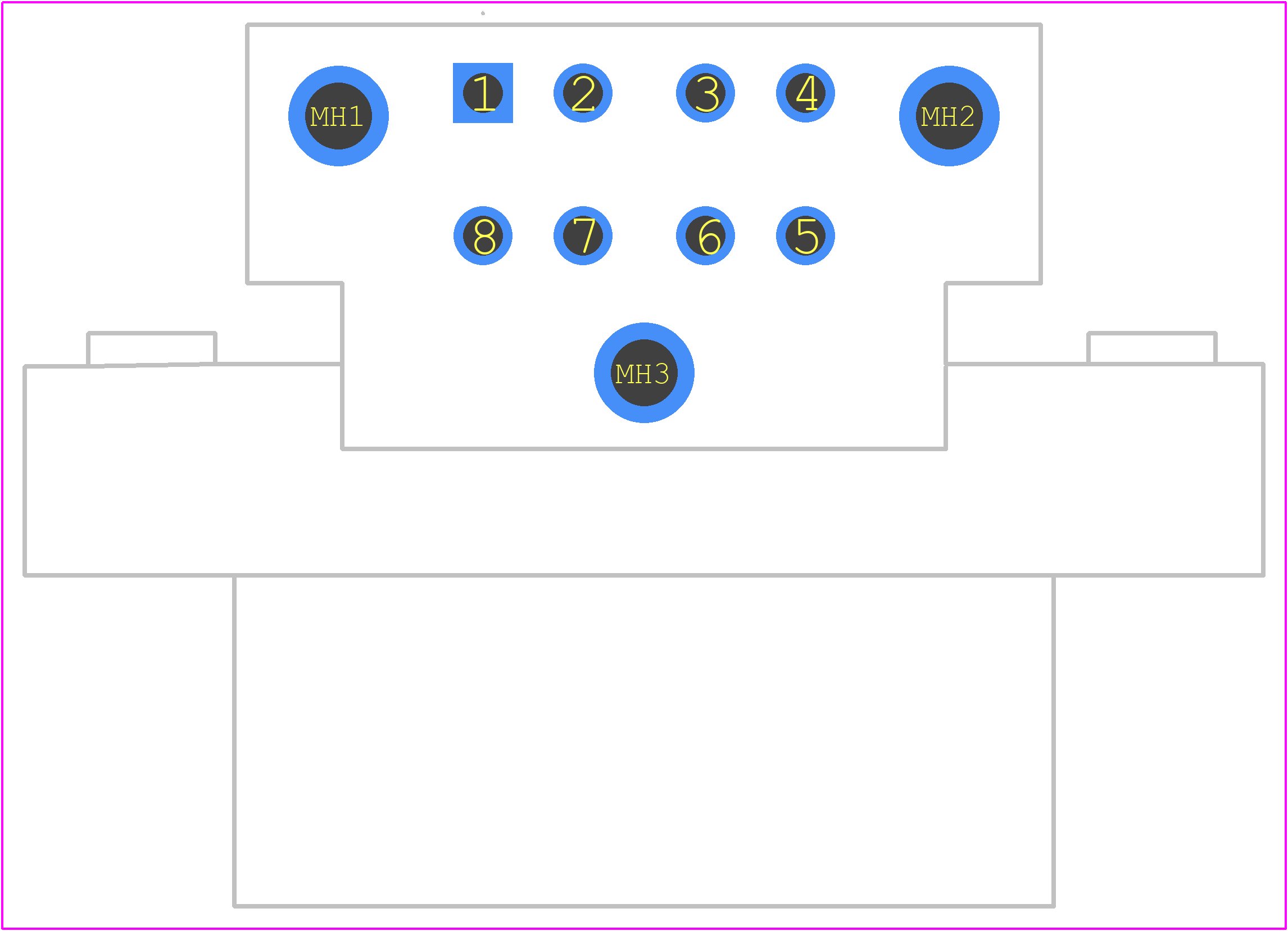

DT13-08PD - TE Connectivity PCB footprint - Other - Other - DT13-08PD-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DT13-08PD
Part Number DT13-08PD
Manufacturer TE Connectivity
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - DT13-08PD-1
Released Date Jun 6, 2022
Last Modified Date Dec 15, 2024 11:20 PM UTC
Pinout / Pin List Click Here (Member Only)

DT13-08PD Details

Manufacturer Part Number:
DT13-08PD
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mexico
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
8
Additional Feature:
POALRIZED
Body Breadth:
1 inch
Body Depth:
1.848 inch
Body Length:
1.435 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Style:
RND PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
GLASS FILLED POLYAMIDE
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
13 A
Termination Type:
SOLDER
Total Number of Contacts:
8

DT13-08PD Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
Yes, the DT13-08PD is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure that the connector is properly secured and the screw terminals are tightened to the recommended torque to maintain reliable connections.
The DT13-08PD has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure that the connector is properly sealed and protected from environmental factors such as UV radiation, extreme temperatures, and humidity to maintain its performance and reliability.
While the datasheet specifies 14-22 AWG wire sizes, it's possible to use the DT13-08PD with other wire sizes. However, it's crucial to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.
The DT13-08PD has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

DT13-08PD Overview

Use the download button to access the DT13-08PD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DT13-, or try a keyword search, such as Combination Line Connectors
