DT13-2P - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: Number of Sections 1 | PCB Mount Orientation Right Angle | Number of Positions 2 | Number of Signal Positions 2 | Number of Rows 1 | Contact Features: Contact Type Pin | Mating Pin Diameter 1.59 MM | Contact Mating Area Plating Material Nickel | Contact Current Rating (Max) 13 AMP | Mating Pin Diameter .063 INCH | Contact Size Size 16 | Dimensions: Connector Width 35.31 MM | Profile Height from PCB 1.08 INCH | PCB Thickness (Recommended) .0

Download DT13-2P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DT13-2P - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

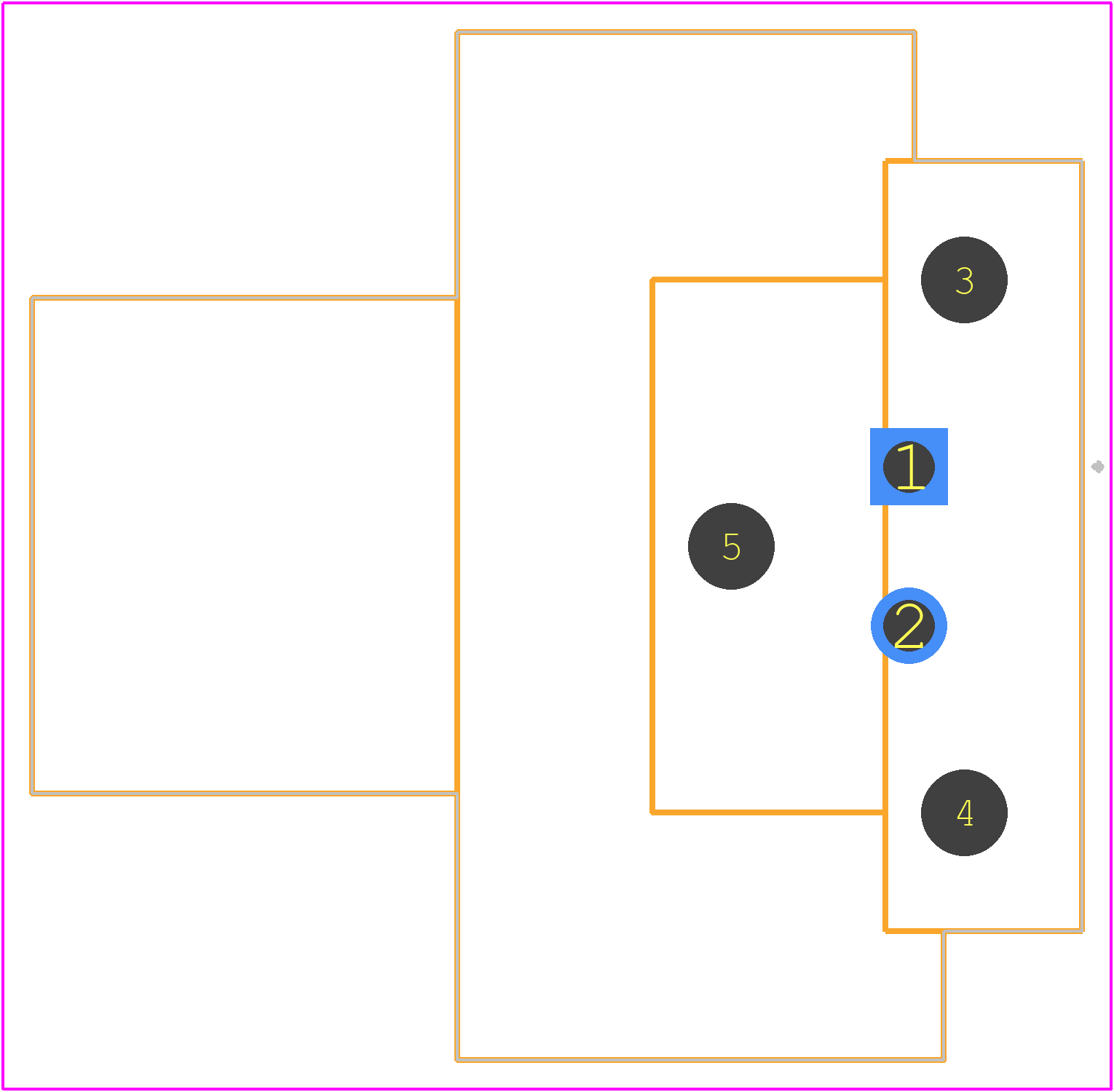

DT13-2P - TE Connectivity PCB footprint - Other - Other - DT13-2P_1
click to zoom
3D Models
DT13-2P - TE Connectivity - 3D model - Other - DT13-2P_1
click to zoom

DT13-2P Details

  • Manufacturer Part Number:

    DT13-2P

  • Brand Name:

    DEUTSCH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    7 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

DT13-2P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.2 in-lbs).
  • Yes, the DT13-2P is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1 standard for vibration resistance.
  • The operating temperature range for the DT13-2P is -40°C to 125°C (-40°F to 257°F).
  • Yes, the DT13-2P is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum wire size that can be used with the DT13-2P is 2.5 mm² (14 AWG).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DT13-2P Overview

Use the download button to access the DT13-2P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DT13-, or try a keyword search, such as Other Transistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
