DT13-6P - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: Number of Sections 1 | PCB Mount Orientation Right Angle | Number of Positions 6 | Number of Rows 2 | Number of Signal Positions 6 | Contact Features: Contact Size Size 16 | Contact Mating Area Plating Material Nickel | Mating Pin Diameter 1.59 MM | Mating Pin Diameter .063 INCH | Contact Current Rating (Max) 13 AMP | Contact Type Pin | Dimensions: Connector Width 1.685 INCH | PCB Thickness (Recommended) .031 – .093 INCH | Profile Height

Download DT13-6P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DT13-6P - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

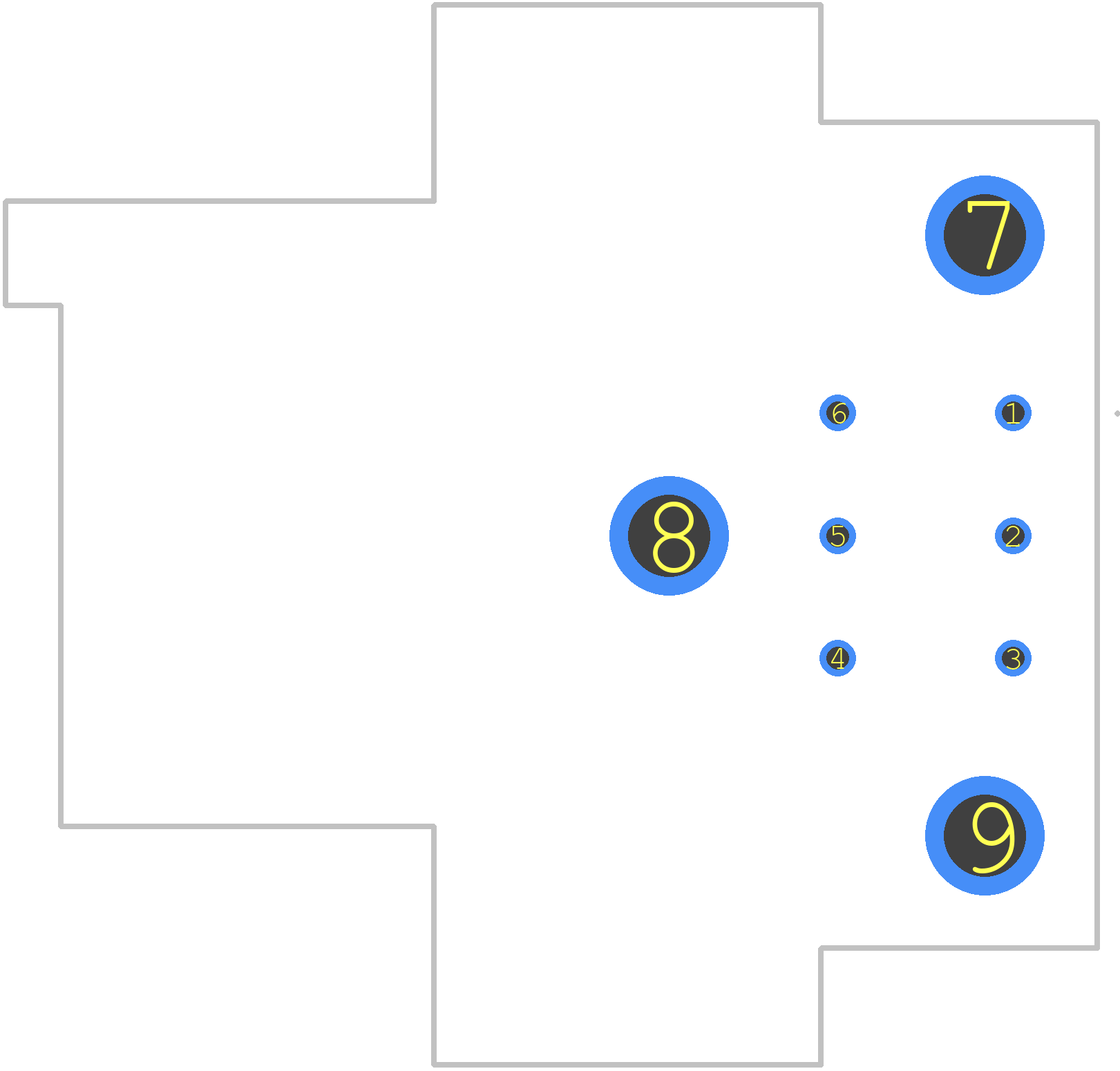

DT13-6P - TE Connectivity PCB footprint - Other - Other - DT13-6P
click to zoom
3D Models
DT13-6P - TE Connectivity - 3D model - Other - DT13-6P
click to zoom

DT13-6P Details

  • Manufacturer Part Number:

    DT13-6P

  • Brand Name:

    DEUTSCH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

DT13-6P Frequently Asked Questions (FAQs)

  • The recommended torque for the DT13-6P connector is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the DT13-6P connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the DT13-6P connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
  • The operating temperature range of the DT13-6P connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the DT13-6P connector is designed to be compatible with other TE Connectivity products, including cables, connectors, and accessories.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DT13-6P Overview

Use the download button to access the DT13-6P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DT13-, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
