Part Image

DTL1553-45 - iNRCORE

Description: Pulse Transformer 1CT:2.5CT/1CT:1.79CT 100Vrms 1Ohm Prim. DCR 3.5Ohm Sec. DCR 16 Terminal PC Pin Thru-Hole

Download DTL1553-45 Model

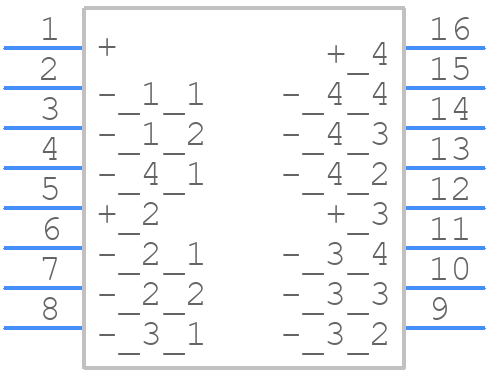

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

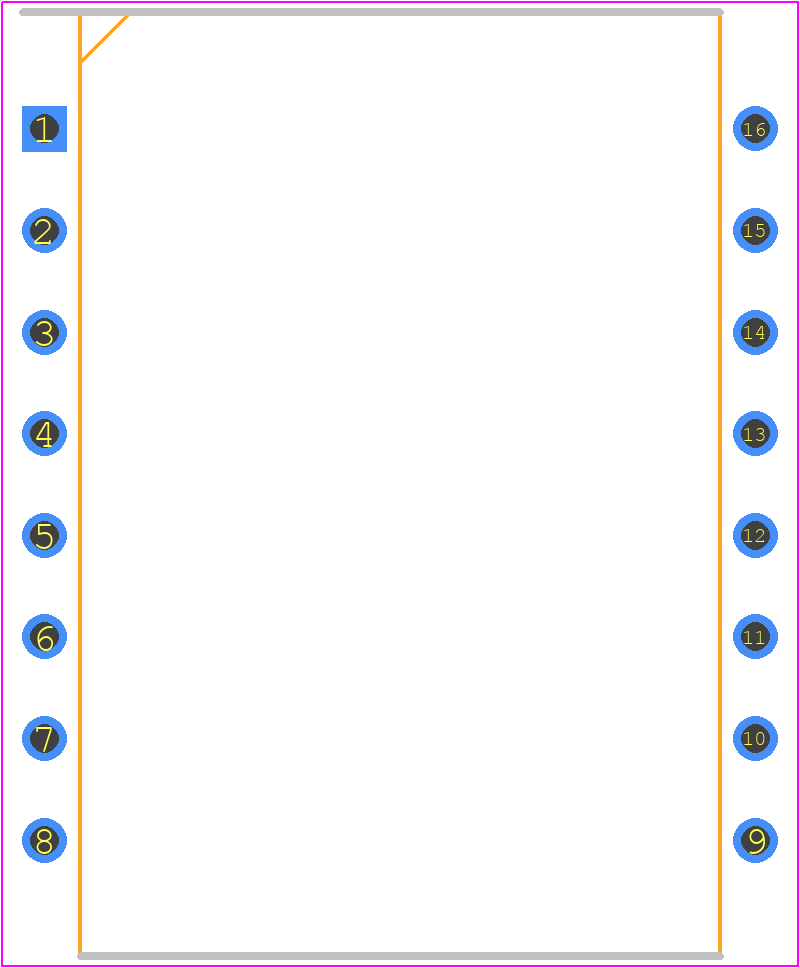

DTL1553-45 - iNRCORE PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DTL1553-45
click to zoom
3D Models
DTL1553-45 - iNRCORE  - 3D model - Dual-In-Line Packages - DTL1553-45
click to zoom

DTL1553-45 Details

  • Manufacturer Part Number:

    DTL1553-45

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    iNRCORE LLC

  • YTEOL:

    4

  • Application:

    DATA INTERFACE

  • Approvals:

    MIL-STD-1553

  • Height:

    3.94 mm

  • Isolation Voltage:

    100 V

  • JESD-609 Code:

    e0

  • Length:

    23.62 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Functions:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:2.5CT; 1CT:1.79CT

  • Width:

    16 mm

DTL1553-45 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DTL1553-45 is -40°C to 85°C, but it can be customized for specific applications.
  • To ensure reliable data transmission, it's essential to follow the MIL-STD-1553 protocol, use proper cable termination, and implement error detection and correction mechanisms in your system design.
  • Yes, the DTL1553-45 can be used in a redundant or fault-tolerant system architecture. It supports dual-redundant bus configurations and can be designed to meet specific system requirements.
  • The DTL1553-45 has undergone rigorous testing and validation, including environmental testing, electrical testing, and protocol compliance testing, to ensure it meets the requirements of MIL-STD-1553 and other relevant standards.
  • Yes, it's essential to follow proper EMI/EMC design practices, such as using shielded cables, proper grounding, and filtering, to ensure the DTL1553-45 operates reliably in a noisy electromagnetic environment.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DTL1553-45 Overview

Use the download button to access the DTL1553-45 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DTL15, or try a keyword search, such as Pulse/Datacom Transformers
