DTM13-12PC-12PD-R008 - TE Connectivity

Description: Right Angle, Wire-to-Board, 24 Position, 2 Rows, 4.19mm [.165in] Centerline, Nickel (Ni), Sealable, Wire & Cable, DEUTSCH DT

Download DTM13-12PC-12PD-R008 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

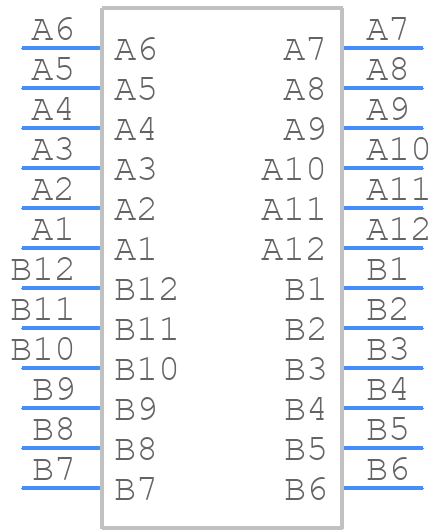

DTM13-12PC-12PD-R008 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

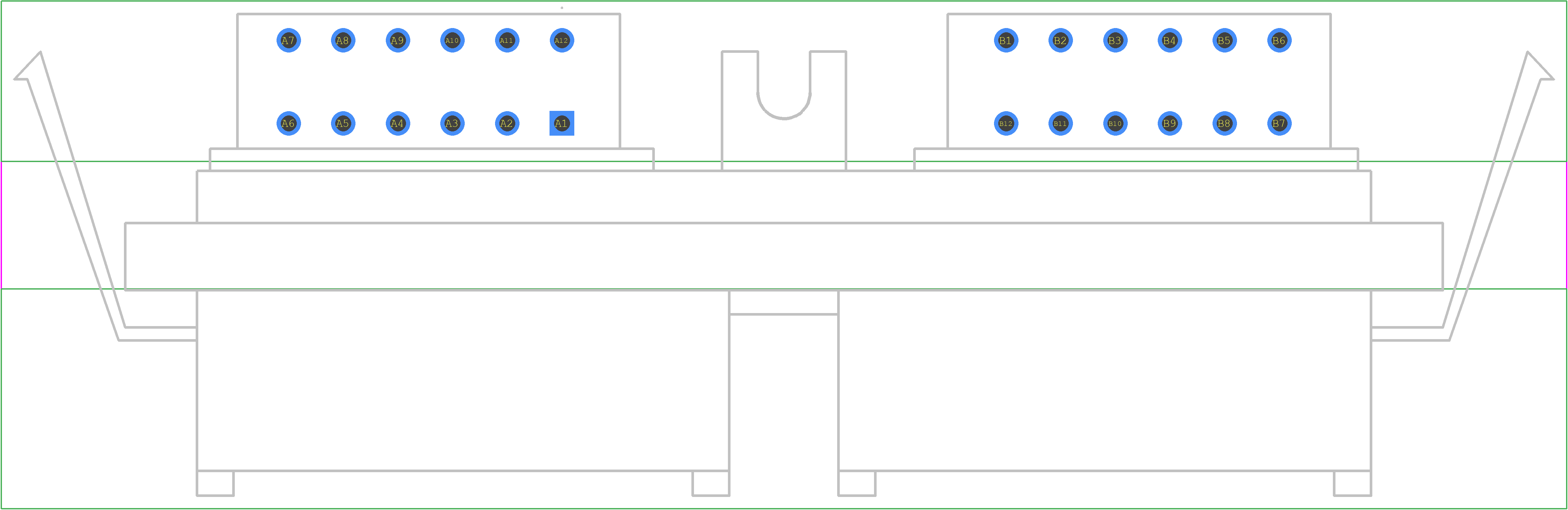

DTM13-12PC-12PD-R008 - TE Connectivity PCB footprint - Other - Other - DTM13-12PC-12PD-R008-1
click to zoom
3D Models
DTM13-12PC-12PD-R008 - TE Connectivity - 3D model - Other - DTM13-12PC-12PD-R008-1
click to zoom

DTM13-12PC-12PD-R008 Details

  • Manufacturer Part Number:

    DTM13-12PC-12PD-R008

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    1 Week, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    3.976 inch

  • Body Depth:

    1.453 inch

  • Body Length:

    1.453 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    PLASTIC

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    7.5A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    7.5 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    4.19 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

DTM13-12PC-12PD-R008 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the DTM13-12PC-12PD-R008 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) at 10-2000 Hz.
  • The DTM13-12PC-12PD-R008 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's essential to ensure proper sealing and protection when using it in outdoor environments.
  • The DTM13-12PC-12PD-R008 has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies a wire gauge range of 24-14 AWG, it's possible to use a different wire gauge with this connector. However, it's crucial to ensure that the wire gauge is compatible with the connector's terminal size and that the wire is properly secured to prevent damage or electrical issues.
