DTM1312PA12PBR008 - TE Connectivity

Description: Automotive Connectors RC 24P PCB HEADER A & B KEY

Download DTM1312PA12PBR008 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

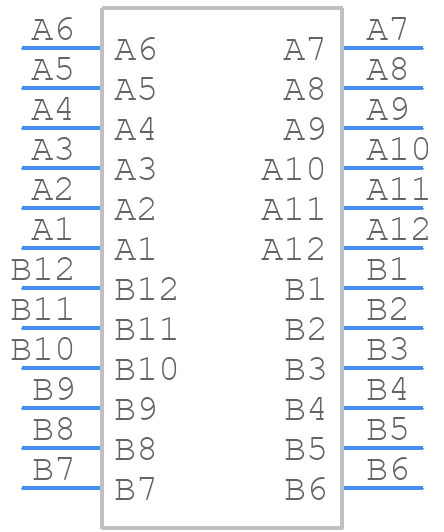

DTM1312PA12PBR008 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

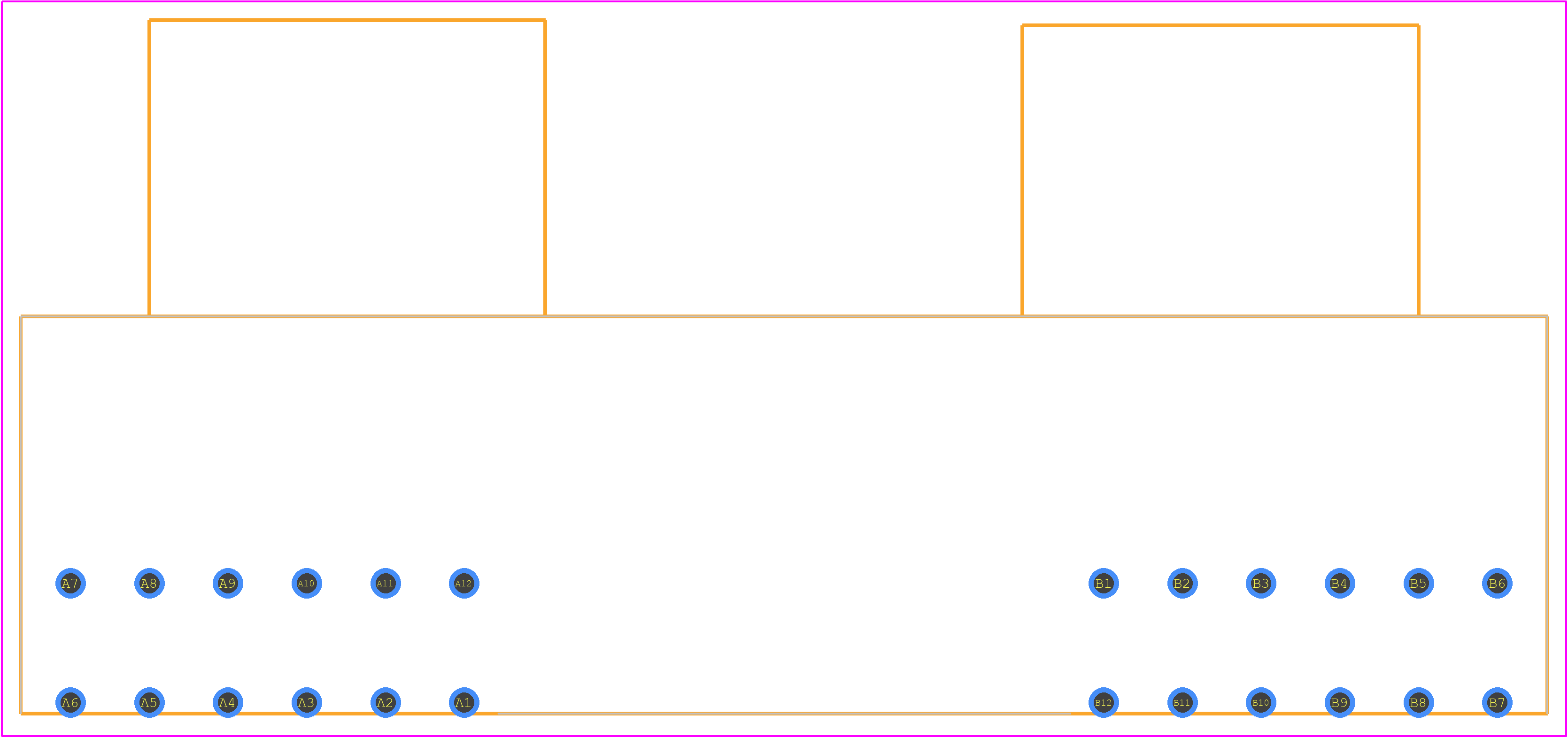

DTM1312PA12PBR008 - TE Connectivity PCB footprint - Other - Other - DTM1312PA12PBR008-3
click to zoom
3D Models
DTM1312PA12PBR008 - TE Connectivity - 3D model - Other - DTM1312PA12PBR008-3
click to zoom

DTM1312PA12PBR008 Details

  • Manufacturer Part Number:

    DTM1312PA12PBR008

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    POLARIZED

  • Body Breadth:

    3.976 inch

  • Body Depth:

    1.453 inch

  • Body Length:

    1.453 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    PLASTIC

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    7.5A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    7.5 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    4.19 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

DTM1312PA12PBR008 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm. It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the DTM1312PA12PBR008 is designed to withstand vibrations and can be used in high-vibration environments. However, it's essential to ensure that the connector is properly secured and the screw terminals are tightened to the recommended torque to prevent loosening over time.
  • The DTM1312PA12PBR008 has a plastic housing that meets the UL 94V-0 flammability rating, but it's not specifically designed for outdoor use. If you need to use the connector outdoors, you should consider additional protection measures, such as sealing or conformal coating, to ensure reliability in harsh environments.
  • The DTM1312PA12PBR008 has an operating temperature range of -40°C to 105°C. However, it's essential to note that the connector's performance and reliability may degrade at extreme temperatures, so it's crucial to consider the specific application requirements and potential thermal stresses.
  • While it's technically possible to use the DTM1312PA12PBR008 with a different wire gauge, it's not recommended. Using a wire gauge that's not specified in the datasheet can lead to unreliable connections, increased contact resistance, and potentially even damage to the connector or wire.
