The recommended PCB layout for the DVC1000-P involves keeping the high-frequency signals away from the low-frequency signals, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
Calibration of the DVC1000-P involves applying a known current to the device and adjusting the offset and gain values to match the measured current. The calibration process should be done at multiple points across the operating range to ensure accuracy.
The maximum operating temperature range for the DVC1000-P is -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures, so it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance.
Yes, the DVC1000-P is suitable for high-frequency current measurement applications up to 100 kHz. However, the device's bandwidth and accuracy may degrade at higher frequencies, so it's recommended to use a filter or a signal conditioner to improve the measurement accuracy.
To protect the DVC1000-P from EMI, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or a ferrite bead on the input lines. Additionally, using a low-pass filter or a shielded cable can also help to reduce EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DVC1000-P Overview

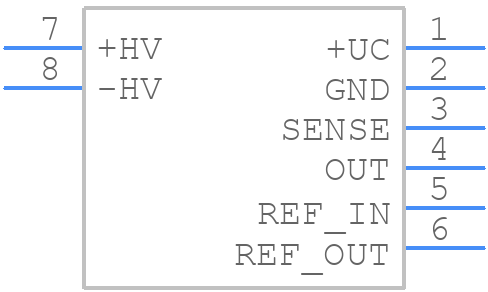

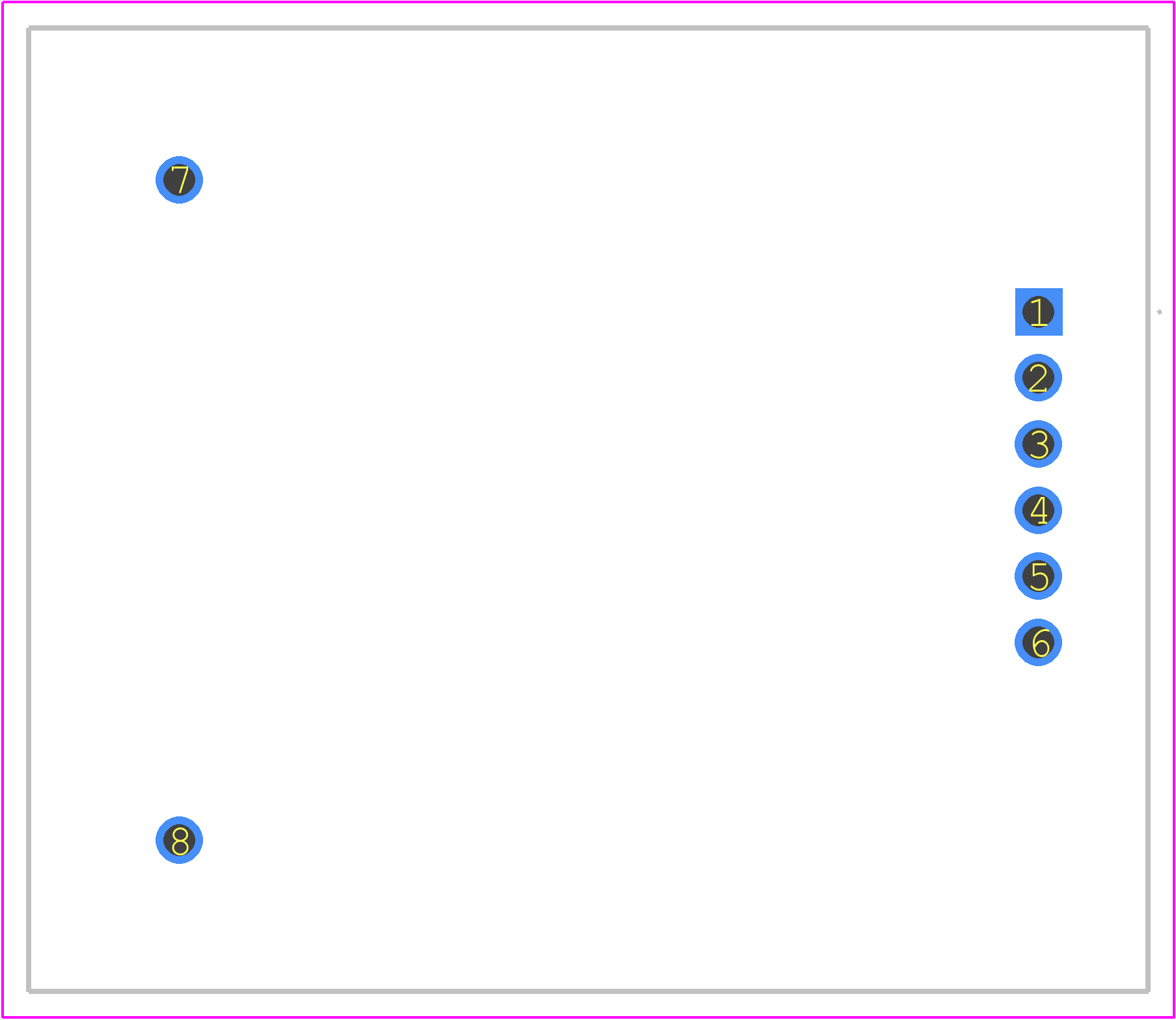

Use the download button to access the DVC1000-P schematic symbol and PCB footprint.
