DVE0125V2NBC - Murata Electronics

Description: Isolated Through Hole DC/DC Converter, ITE, Eighth Brick, 2:1, 300 W, 1 Output, 12 V

Download DVE0125V2NBC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DVE0125V2NBC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

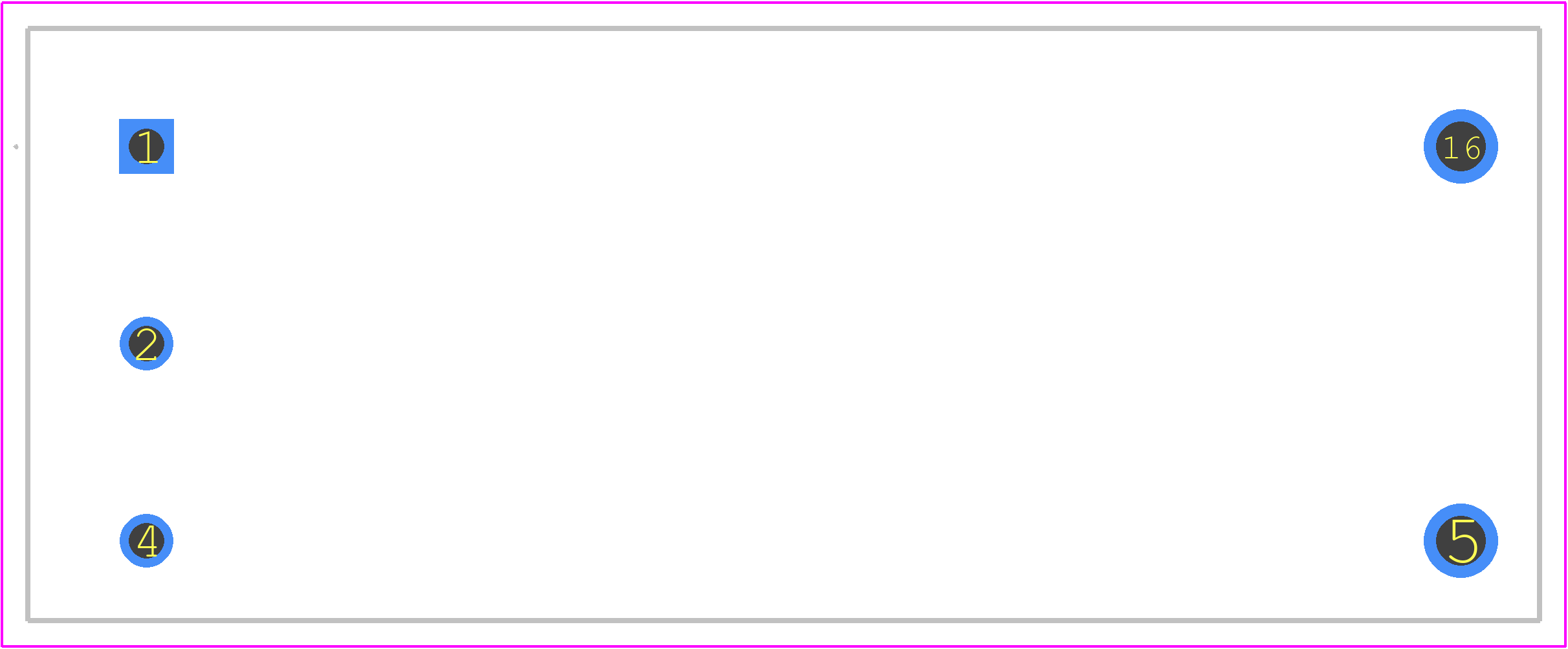

DVE0125V2NBC - Murata Electronics PCB footprint - Other - Other - 58.4mm x 22.9mm x 13.1mm
click to zoom
3D Models
DVE0125V2NBC - Murata Electronics - 3D model - Other - 58.4mm x 22.9mm x 13.1mm
click to zoom

DVE0125V2NBC Details

  • Manufacturer Part Number:

    DVE0125V2NBC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    36 Weeks

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    94.6%

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDIP-P5

  • Length:

    58.4 mm

  • Line Regulation-Max:

    0.25%

  • Load Regulation-Max:

    0.25%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    25 A

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP5/16,2(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    300 W

  • Trim/Adjustable Output:

    NO

  • Width:

    22.9 mm

DVE0125V2NBC Frequently Asked Questions (FAQs)

  • Murata recommends a 4-layer PCB with a solid ground plane and a separate power plane for the DC-DC converter. The layout should also minimize the loop area of the input and output circuits to reduce EMI.
  • Ensure good airflow around the module, and consider adding a heat sink or thermal interface material to the module's thermal pad. Also, follow the recommended PCB layout and thermal design guidelines.
  • The DVE0125V2NBC can tolerate a maximum input voltage deviation of ±10% of the nominal input voltage (12V) without affecting its performance or reliability.
  • The DVE0125V2NBC is rated for operation up to 85°C ambient temperature. However, derating the output power or using additional cooling measures may be necessary for high-temperature applications.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the module is properly soldered and that there are no signs of physical damage. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DVE0125V2NBC Overview

Use the download button to access the DVE0125V2NBC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DVE01, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
