VPT Inc recommends a 4-layer PCB with a dedicated power plane, and thermal vias under the device to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended for the power plane. Additionally, a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K is recommended between the device and the heat sink.
VPT Inc recommends using a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 217°C to 220°C. The recommended soldering time is 3-5 seconds per pin, and the device should be soldered in a nitrogen atmosphere to prevent oxidation. A soldering profile with a peak temperature of 240°C to 245°C is recommended.
VPT Inc recommends using low-ESR capacitors with a voltage rating of at least 50V for the input and output capacitors. A minimum capacitance of 10uF is recommended for the input capacitor, and a minimum capacitance of 22uF is recommended for the output capacitor. X7R or X5R dielectric capacitors are recommended for their low ESR and high reliability.
To troubleshoot common issues with the DVTR28515T, VPT Inc recommends checking the input voltage, output load, and ambient temperature. Ensure that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability.
VPT Inc recommends using a high-precision digital multimeter (DMM) to measure the input and output voltages, and a current probe or shunt resistor to measure the output current. An oscilloscope with a bandwidth of at least 100 MHz is recommended to measure the output voltage and current waveforms. A thermal camera or thermocouple is recommended to measure the device temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DVTR28515T Overview

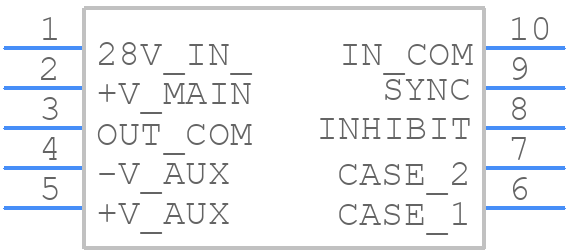

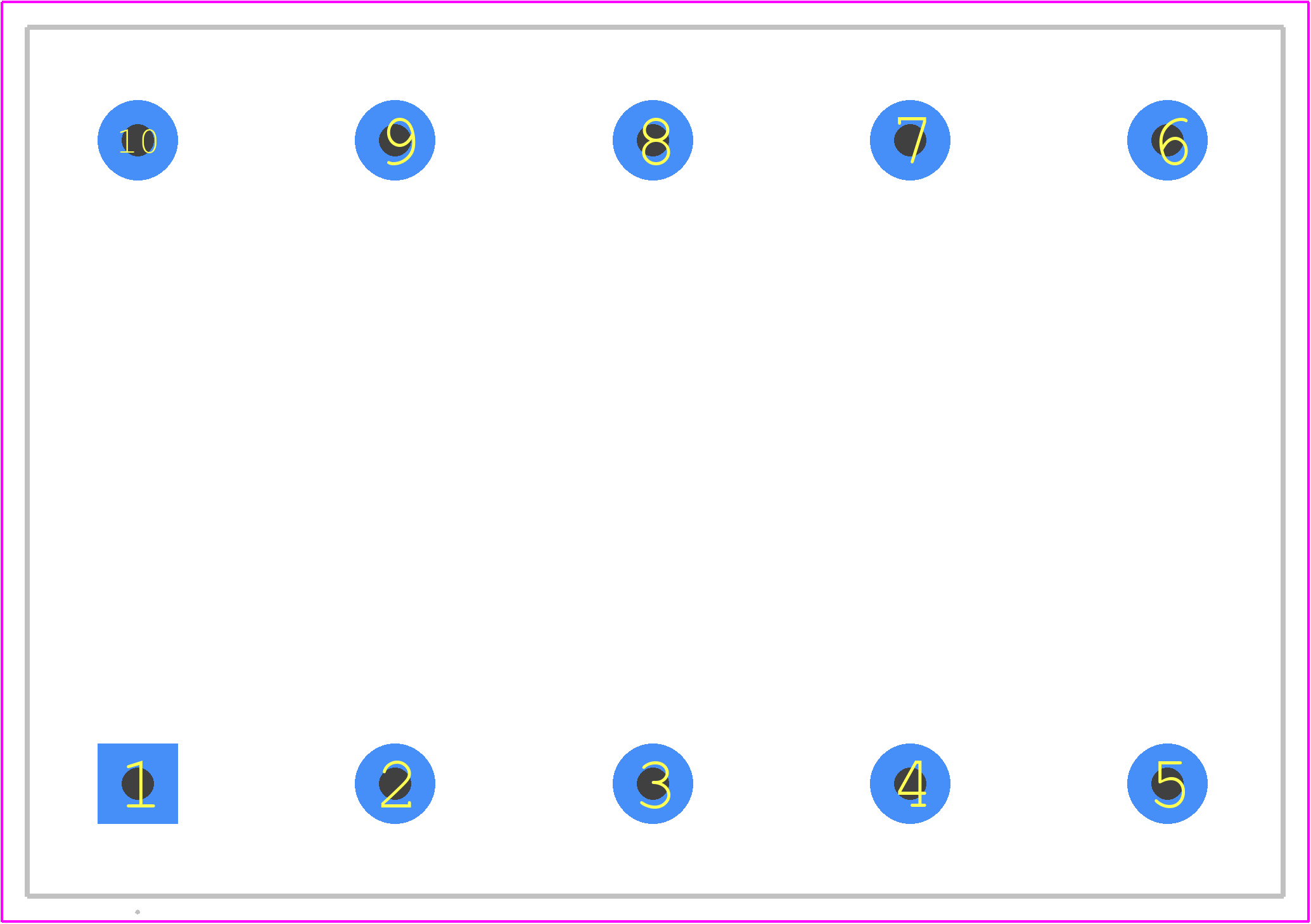

Use the download button to access the DVTR28515T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DVTR2,
or try a keyword search, such as Power Supply Modules
