DW-20-08-T-S-270 - SAMTEC

Description: .100" Flex Stack, Flexible Board Stacker, .110" Tail, contacts per row, Row

Download DW-20-08-T-S-270 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DW-20-08-T-S-270 - SAMTEC - PCB symbol
click to zoom

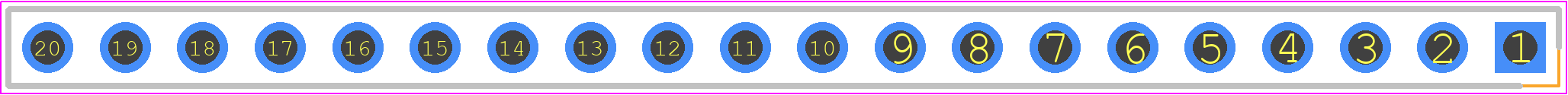

PCB Footprints
DW-20-08-T-S-270 - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - DW-20-08-T-S-270
click to zoom
3D Models
DW-20-08-T-S-270 - SAMTEC - 3D model - Header, Vertical - DW-20-08-T-S-270
click to zoom

DW-20-08-T-S-270 Details

  • Manufacturer Part Number:

    DW-20-08-T-S-270

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.27 inch

  • Body Length:

    2 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    100 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    3 A

  • Terminal Length:

    0.11 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

DW-20-08-T-S-270 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the DW-20-08-T-S-270 is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's general guidelines for screw torque.
  • Yes, the DW-20-08-T-S-270 is designed to withstand vibration and shock. Samtec recommends following their guidelines for vibration and shock testing, and consulting with their application engineers for specific requirements.
  • The maximum operating temperature for the DW-20-08-T-S-270 is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to consult with Samtec's application engineers for specific temperature requirements and potential derating.
  • Yes, the DW-20-08-T-S-270 is compatible with lead-free soldering processes. Samtec recommends following their guidelines for lead-free soldering and consulting with their application engineers for specific requirements.
  • Samtec provides recommended PCB layout and footprint guidelines for the DW-20-08-T-S-270 in their datasheet and application notes. It's recommended to consult with Samtec's application engineers for specific layout and footprint requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DW-20-08-T-S-270 Overview

Use the download button to access the DW-20-08-T-S-270 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DW-20, or try a keyword search, such as Headers and Edge Type Connectors
