DX-5R5H104U - Elna

Description: Electric Double Layer Capacitor, Electric Double Layer, 5.5V, 80% +Tol, 20% -Tol, 100000uF, Through Hole Mount

Download DX-5R5H104U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DX-5R5H104U - Elna - PCB symbol
click to zoom
PCB Footprints

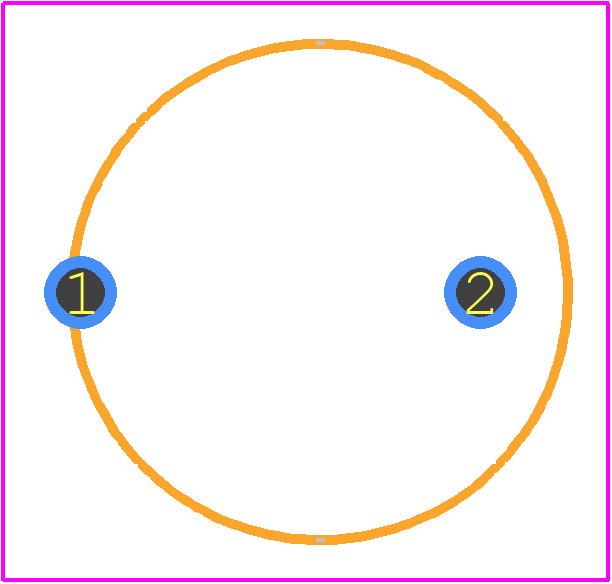

DX-5R5H104U - Elna PCB footprint - Other - Other - DX-5R5H104U-4
click to zoom
3D Models
DX-5R5H104U - Elna - 3D model - Other - DX-5R5H104U-4
click to zoom

DX-5R5H104U Details

  • Manufacturer Part Number:

    DX-5R5H104U

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    ELNA America Inc

  • YTEOL:

    0

  • Capacitance:

    100000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    11.5 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    FLAT

DX-5R5H104U Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DX-5R5H104U is between 230°C to 250°C for a maximum of 3 seconds.
  • The DX-5R5H104U is suitable for high-frequency applications up to 100 MHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, the DX-5R5H104U is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum operating temperature range for the DX-5R5H104U is -55°C to +125°C.
  • The DX-5R5H104U follows a standard voltage derating curve, with a recommended derating of 1.25 times the rated voltage at 125°C.
