The recommended torque value is 0.5 N·m to 1.5 N·m (5 kgf·cm to 15 kgf·cm) for the screw locks.
Yes, the DX10G1M-26SE(50) is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in automotive or industrial applications.
The operating temperature range for the DX10G1M-26SE(50) is -40°C to 105°C (-40°F to 221°F).
Yes, the DX10G1M-26SE(50) is compatible with lead-free soldering and is RoHS compliant.
The mating cycle rating for the DX10G1M-26SE(50) is 500 cycles.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DX10G1M-26SE(50) Overview

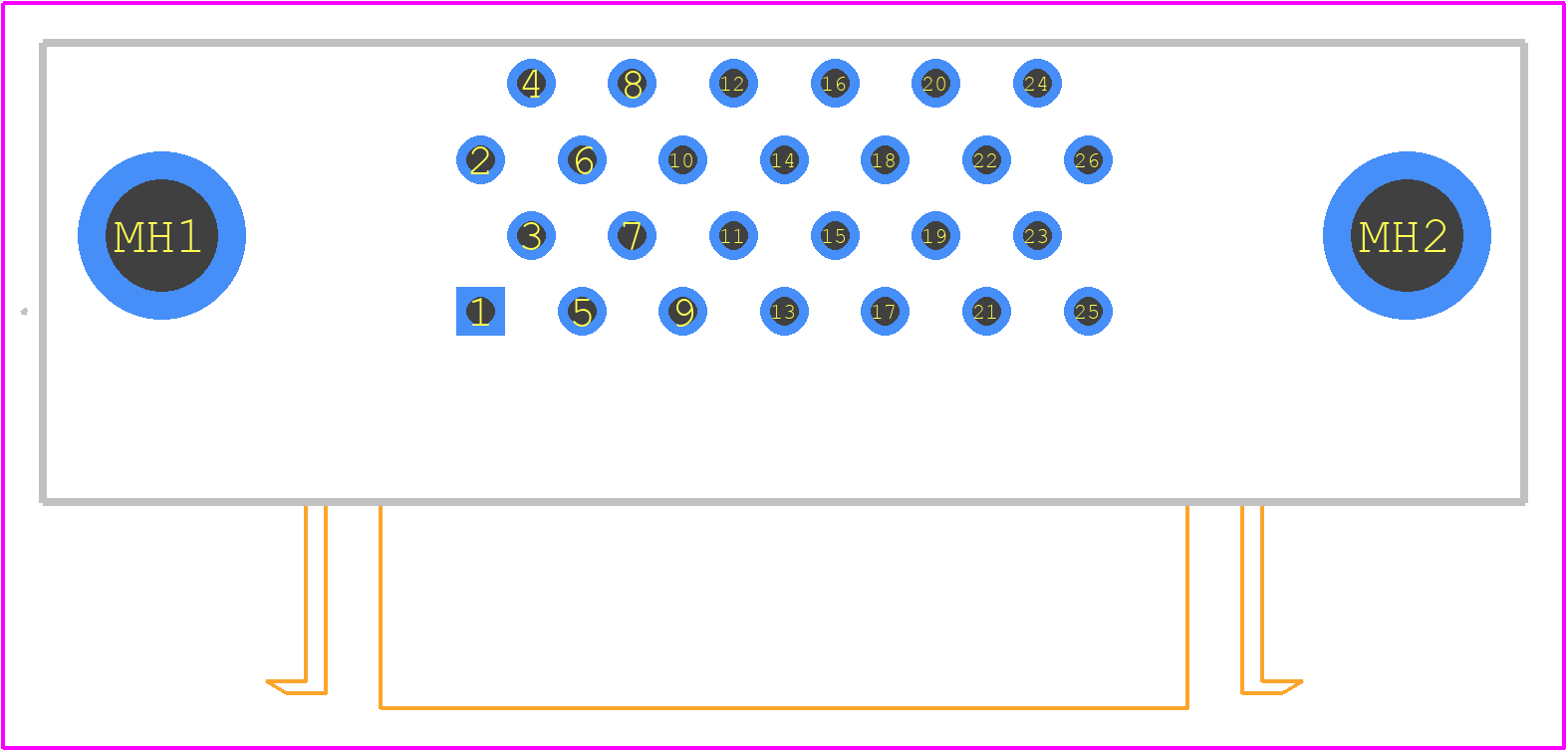

Use the download button to access the DX10G1M-26SE(50) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DX10G,
or try a keyword search, such as Telecom and Datacom Connectors
