Part Image

DX10GM-20SE(50) - Hirose

Description: CONN MINI HD RCPT 20P R/A SOLDER

Download DX10GM-20SE(50) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

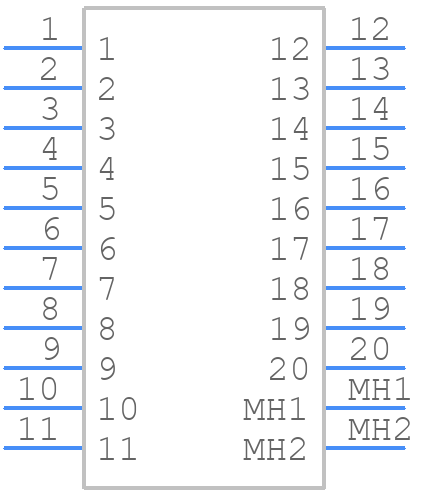

DX10GM-20SE(50) - Hirose - PCB symbol
click to zoom
PCB Footprints

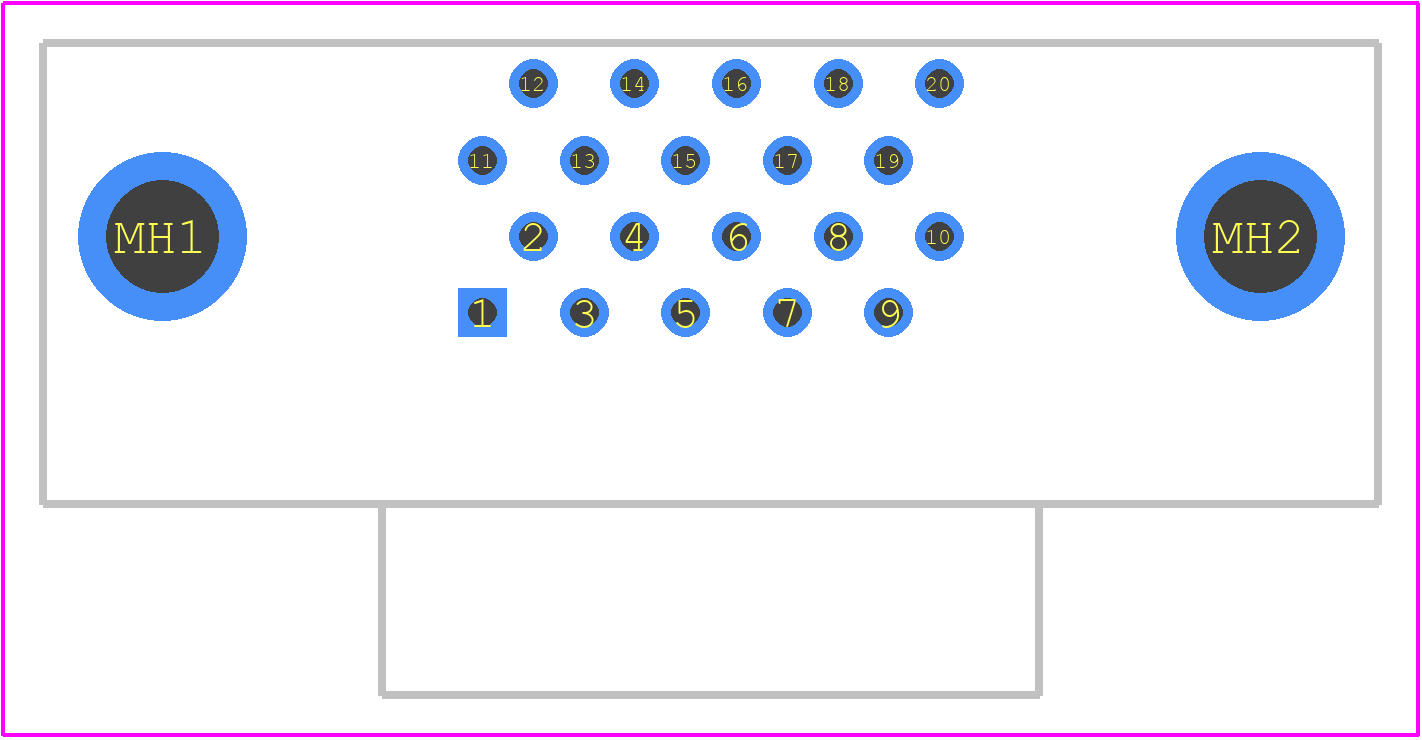

DX10GM-20SE(50) - Hirose PCB footprint - Other - Other - DX10GM-20SE(50)-3
click to zoom
3D Models
DX10GM-20SE(50) - Hirose - 3D model - Other - DX10GM-20SE(50)-3
click to zoom

DX10GM-20SE(50) Details

  • Manufacturer Part Number:

    DX10GM-20SE(50)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

DX10GM-20SE(50) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the DX10GM-20SE(50) connector is designed to withstand high-vibration environments. It has a ruggedized design and a secure locking mechanism to ensure reliable connections even in harsh conditions.
  • The maximum operating temperature range for the DX10GM-20SE(50) connector is -40°C to +105°C. However, it's recommended to consult the datasheet for specific temperature ratings for different applications.
  • Yes, the DX10GM-20SE(50) connector is designed to be compatible with automated assembly processes. It has a pick-and-place compatible design and can be easily integrated into automated assembly lines.
  • The recommended torque value for the DX10GM-20SE(50) connector's screw locks is 0.5 N·m to 1.5 N·m. It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DX10GM-20SE(50) Overview

Use the download button to access the DX10GM-20SE(50) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DX10G, or try a keyword search, such as Telecom and Datacom Connectors
