DX10M-20S(50) - Hirose

Description: 20 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole, Right Angle Solder

Download DX10M-20S(50) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

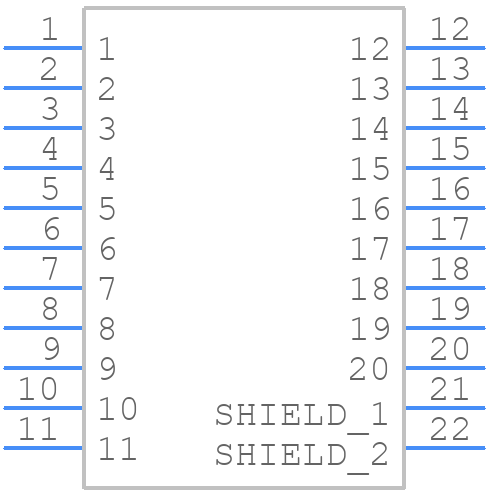

DX10M-20S(50) - Hirose - PCB symbol
click to zoom
PCB Footprints

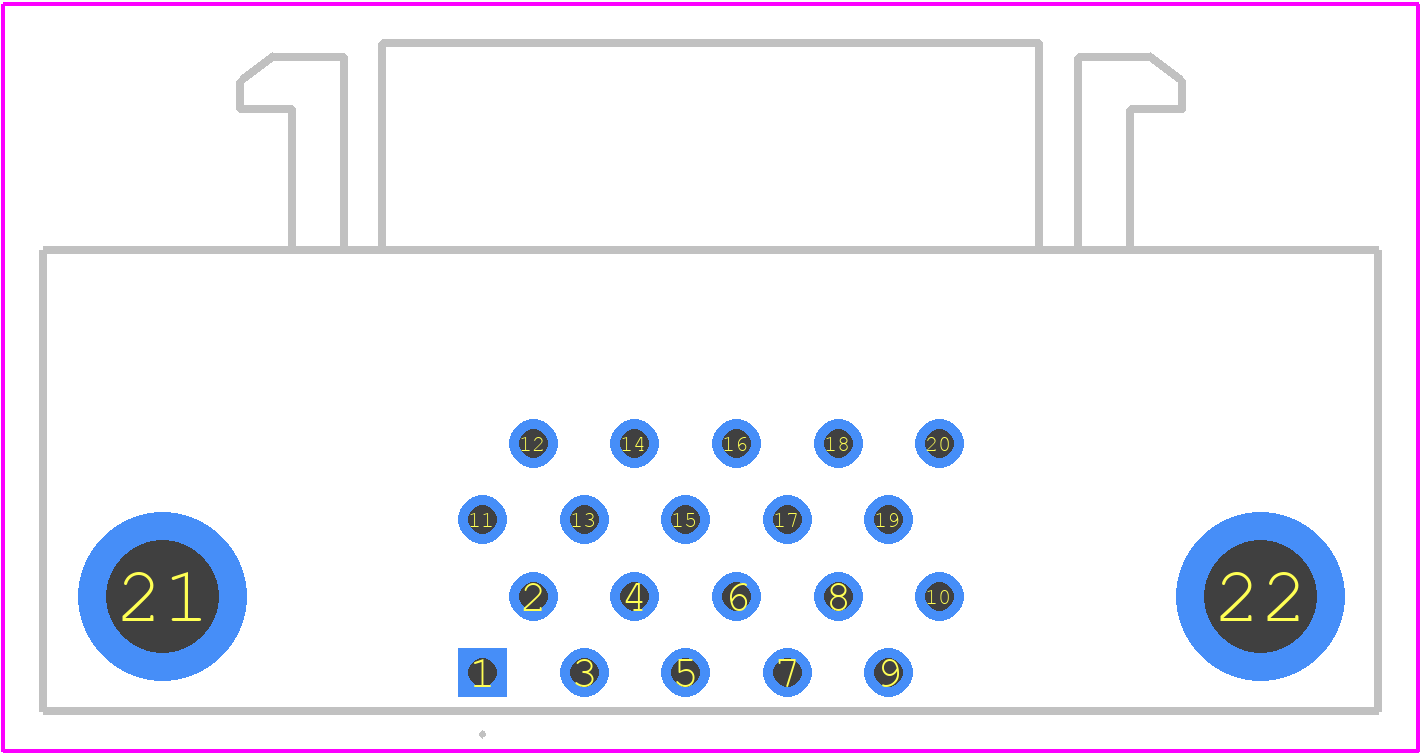

DX10M-20S(50) - Hirose PCB footprint - Other - Other - DX10M-20S(50)-1
click to zoom

DX10M-20S(50) Details

  • Manufacturer Part Number:

    DX10M-20S(50)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

DX10M-20S(50) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the DX10M-20S(50) connector is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and mounting procedures to ensure reliable connections.
  • The maximum cable diameter that can be used with the DX10M-20S(50) connector is 2.5 mm. Using cables with larger diameters may compromise the connector's performance and reliability.
  • Yes, the DX10M-20S(50) connector is designed to be compatible with automated assembly processes. However, it's essential to consult with Hirose Electric Co Ltd or a qualified assembly partner to ensure proper implementation.
  • The operating temperature range for the DX10M-20S(50) connector is -40°C to 105°C. However, it's essential to note that the connector's performance and reliability may be affected at extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DX10M-20S(50) Overview

Use the download button to access the DX10M-20S(50) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DX10M, or try a keyword search, such as Telecom and Datacom Connectors
