DX20M-50S(50) - Hirose

Description: 50 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole Solder

Download DX20M-50S(50) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DX20M-50S(50) - Hirose - PCB symbol
click to zoom
PCB Footprints

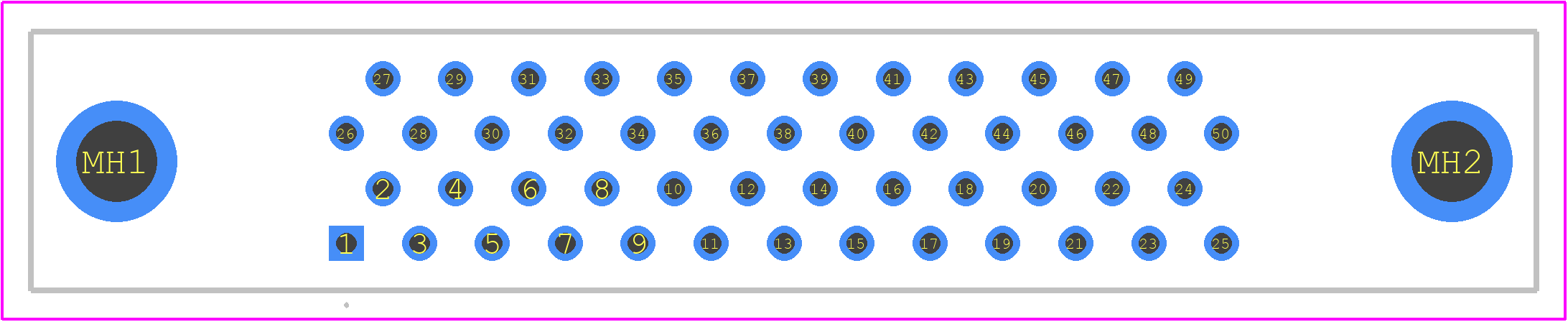

DX20M-50S(50) - Hirose PCB footprint - Other - Other - DX20M-50S(50)-2
click to zoom
3D Models
DX20M-50S(50) - Hirose - 3D model - Other - DX20M-50S(50)-2
click to zoom

DX20M-50S(50) Details

  • Manufacturer Part Number:

    DX20M-50S(50)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    7.5

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

DX20M-50S(50) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DX20M-50S(50) connector is 500 cycles.
  • Yes, the DX20M-50S(50) connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial machinery, automotive, and aerospace.
  • The operating temperature range for the DX20M-50S(50) connector is -40°C to 105°C.
  • Yes, the DX20M-50S(50) connector is designed to be compatible with automated assembly processes, making it suitable for high-volume production.
  • The typical lead time for delivery of the DX20M-50S(50) connector varies depending on the region and quantity, but it is usually around 6-12 weeks.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DX20M-50S(50) Overview

Use the download button to access the DX20M-50S(50) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DX20M, or try a keyword search, such as Telecom and Datacom Connectors
