A good PCB layout for the DXT5551P5-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
To ensure proper biasing, connect the input voltage (VIN) to a stable voltage source, and decouple it with a 10uF capacitor. The enable pin (EN) should be tied to VIN or a voltage divider to ensure a clean enable signal.
When selecting external components, consider the output capacitor (COUT) value, which affects output voltage ripple and transient response. Choose a capacitor with low ESR and a voltage rating that exceeds the output voltage. The inductor (L) value should be selected based on the desired output voltage and current rating.
To troubleshoot issues, start by verifying the input voltage and current, and checking for proper PCB layout and thermal design. Use an oscilloscope to monitor the output voltage and current waveforms. Check for signs of overheating, such as excessive temperature rise or thermal shutdown.
To ensure EMI and EMC compliance, use a shielded enclosure, and consider adding EMI filters or common-mode chokes to the input and output lines. Ensure proper PCB layout and decoupling to minimize radiated emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DXT5551P5-13 Overview

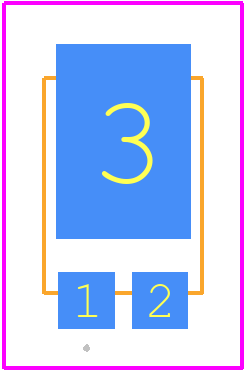

Use the download button to access the DXT5551P5-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DXT55,
or try a keyword search, such as Power Bipolar Transistors
