DXTC3C100PDQ-13 - Diodes Incorporated

Description: Bipolar Transistors - BJT SS Low Sat Transistor PowerDI5060-8/SWP T&R 2.5K

Download DXTC3C100PDQ-13 Model

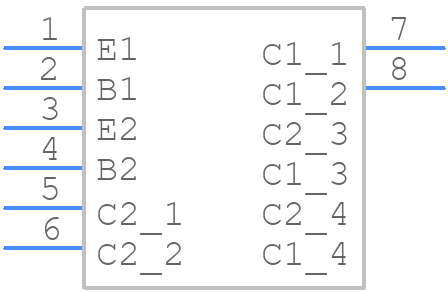

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DXTC3C100PDQ-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8/SWP(Type UXD)
click to zoom
3D Models
DXTC3C100PDQ-13 - Diodes Incorporated  - 3D model - Other - PowerDI5060-8/SWP(Type UXD)
click to zoom

DXTC3C100PDQ-13 Details

  • Manufacturer Part Number:

    DXTC3C100PDQ-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    3 A

  • Collector-Base Capacitance-Max:

    11 pF

  • Collector-Emitter Voltage-Max:

    100 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    10

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    NPN AND PNP

  • Reference Standard:

    AEC-Q101; IATF 16949; MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    130 MHz

  • VCEsat-Max:

    0.33 V

DXTC3C100PDQ-13 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DXTC3C100PDQ-13 is -40°C to 125°C.
  • To ensure reliability, follow the recommended derating guidelines for voltage and current, and consider using thermal management techniques such as heat sinks or thermal interfaces.
  • The maximum allowable power dissipation for the DXTC3C100PDQ-13 is 1.5W, but this value may vary depending on the operating conditions and thermal management.
  • Yes, the DXTC3C100PDQ-13 is suitable for switching regulator applications due to its low RDS(on) and high current capability, but ensure that the device is properly selected and designed for the specific application.
  • Handle the device with proper ESD precautions, such as using an ESD wrist strap, mat, or workstation, and follow the recommended storage and handling procedures.
