DZ11A51-H8R1-4F - Foxconn

Description: DSUB Connector VGA, 15pin, Female, Right Angle, WitDSUB Connector VGA

Download DZ11A51-H8R1-4F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

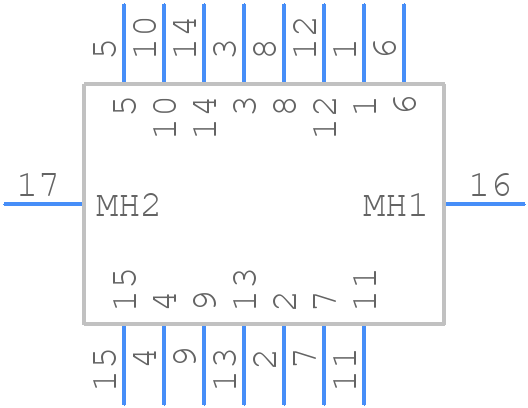

DZ11A51-H8R1-4F - Foxconn - PCB symbol
click to zoom
PCB Footprints

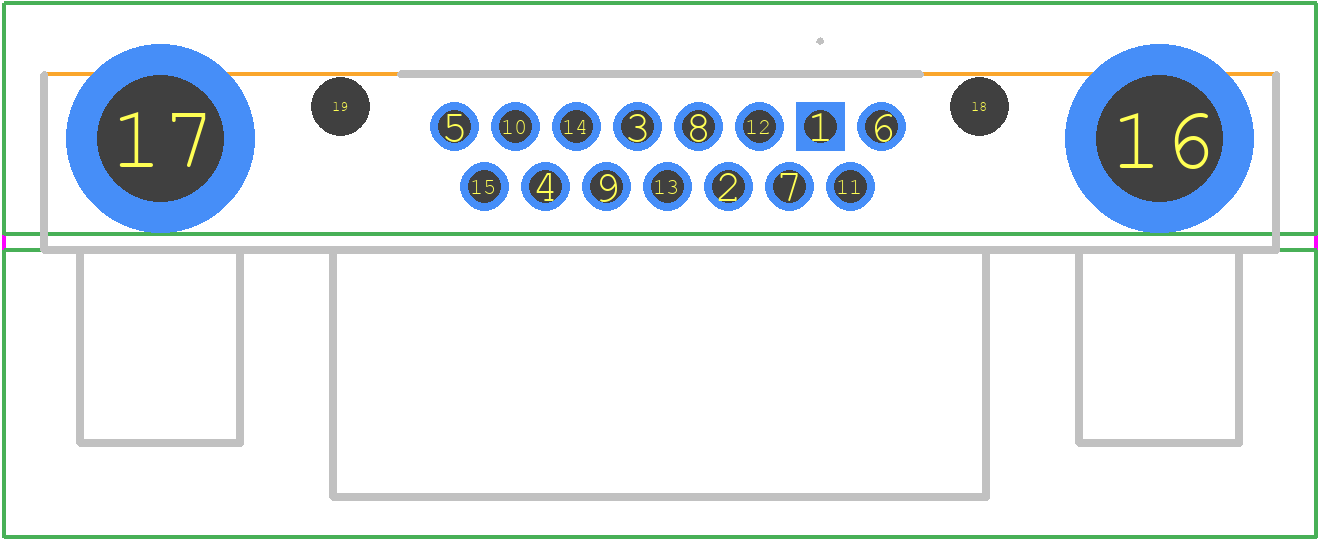

DZ11A51-H8R1-4F - Foxconn PCB footprint - Other - Other - DZ11A51-H8R1-4F-3
click to zoom

DZ11A51-H8R1-4F Details

  • Manufacturer Part Number:

    DZ11A51-H8R1-4F

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Foxconn Interconnect Technology Limited

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    COPPER ALLOY

  • JESD-609 Code:

    e4

DZ11A51-H8R1-4F Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins, to ensure proper alignment and prevent damage to the connector.
  • Yes, the DZ11A51-H8R1-4F connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • The operating temperature range for the DZ11A51-H8R1-4F connector is -40°C to 125°C, making it suitable for a wide range of applications.
  • Yes, the DZ11A51-H8R1-4F connector is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The recommended torque for the DZ11A51-H8R1-4F connector's screw locks is 0.5-1.5 Nm, to ensure secure fastening without damaging the connector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DZ11A51-H8R1-4F Overview

Use the download button to access the DZ11A51-H8R1-4F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DZ11A, or try a keyword search, such as Telecom and Datacom Connectors
