E-L4971D - STMicroelectronics

Description: 1.5A step down switching regulator

Download E-L4971D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

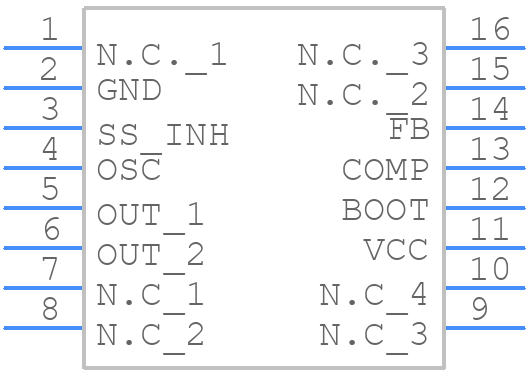

E-L4971D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
E-L4971D - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16W_2024
click to zoom
3D Models
E-L4971D - STMicroelectronics - 3D model - Small Outline Packages - SO-16W_2024
click to zoom

E-L4971D Details

  • Manufacturer Part Number:

    E-L4971D

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SO-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    55 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.01 V

  • Output Voltage-Min:

    2.99 V

  • Output Voltage-Nom:

    3.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    300 kHz

  • Technology:

    BCDMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

E-L4971D Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor value depends on the input voltage, output voltage, and output current. A general rule of thumb is to choose a capacitor with a value between 10uF to 22uF, with a voltage rating at least 1.5 times the input voltage. Consult the datasheet and application notes for more specific guidance.
  • The E-L4971D is rated for operation up to 150°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation above 125°C. Consult the datasheet and thermal management guidelines for more information.
  • To ensure EMC compliance, follow the recommended PCB layout, use a shielded inductor, and add EMI filters as necessary. Additionally, consult the application note AN4553 and relevant EMC standards (e.g., EN 55022) for more guidance.
  • The output capacitor value and type depend on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a low-ESR capacitor (e.g., ceramic or polymer) with a value between 10uF to 47uF, with a voltage rating at least 1.5 times the output voltage. Consult the datasheet and application notes for more specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

E-L4971D Overview

Use the download button to access the E-L4971D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E-L49, or try a keyword search, such as Switching Regulator or Controllers
