E-L6452 - STMicroelectronics

E-L6452 Details

• Manufacturer Part Number:

  E-L6452

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

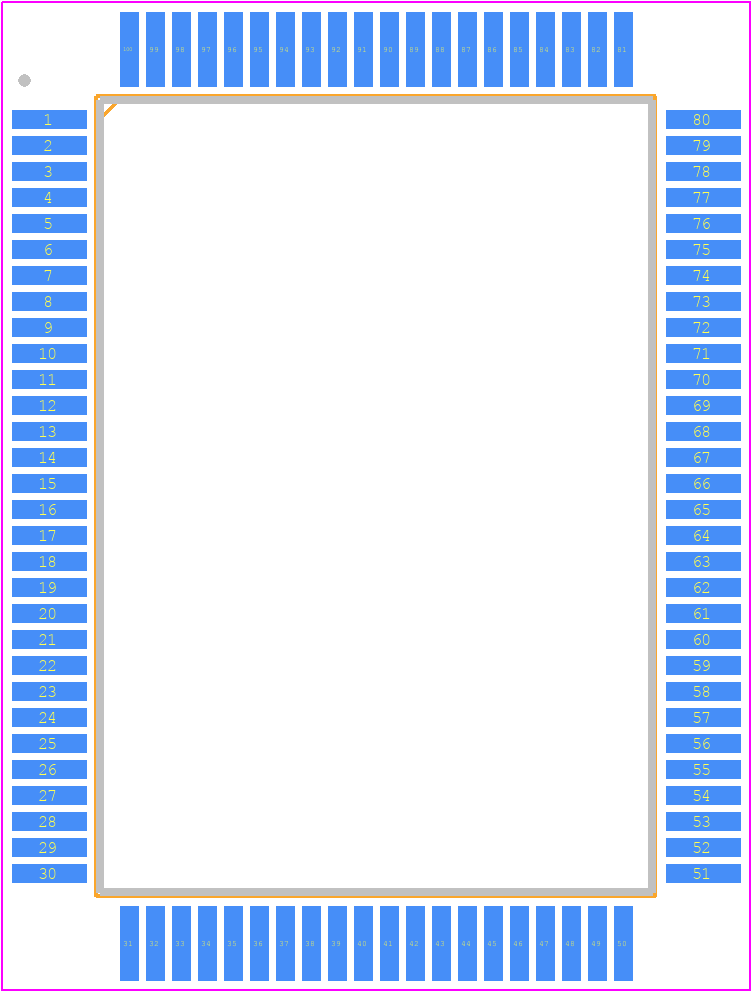

• Part Package Code:

  QFP

• Package Description:

  ROHS COMPLIANT, PLASTIC, QFP-100

• Pin Count:

  100

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  45 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  6.23

• Additional Feature:

  ALSO REQUIRES ANALOG SUPPLY 10.5 TO 12.5 VOLTS

• Built-in Protections:

  TRANSIENT; THERMAL

• Interface IC Type:

  ADDRESSABLE LATCH BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PQFP-G100

• JESD-609 Code:

  e3

• Length:

  20 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  2

• Number of Terminals:

  100

• Operating Temperature-Max:

  70 °C

• Output Current Flow Direction:

  SOURCE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP100,.7X.9

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.4 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.325 µs

• Turn-on Time:

  0.325 µs

• Width:

  14 mm
