E-L6561 - STMicroelectronics

Description: E-L6561, Power Factor Controller, 18 V, 8-Pin, PDIP

Download E-L6561 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

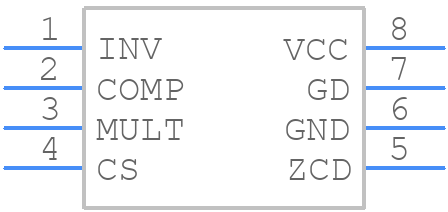

Symbol
E-L6561 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
E-L6561 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PINS - PLASTIC DIP
click to zoom
3D Models
E-L6561 - STMicroelectronics - 3D model - Dual-In-Line Packages - 8 PINS - PLASTIC DIP
click to zoom

E-L6561 Details

  • Manufacturer Part Number:

    E-L6561

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    MINI, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    11 V

  • Input Voltage-Nom:

    14.5 V

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    10.92 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Technology:

    BCDMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

E-L6561 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4392, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor value depends on the input voltage, output voltage, and output current. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the input voltage. Consult the application note AN4392 for more detailed guidance.
  • The E-L6561 is rated for operation up to 150°C ambient temperature, but it's recommended to derate the device for reliable operation above 125°C. Consult the datasheet and application notes for thermal management guidelines.
  • To ensure EMC compliance, follow the guidelines in the application note AN4392, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a metal shield or a Faraday cage to enclose the device and minimize radiated emissions.
  • The output capacitor value and type depend on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a low-ESR capacitor with a value between 10uF to 100uF, with a voltage rating at least 1.5 times the output voltage. Consult the application note AN4392 for more detailed guidance.
