- Part Number E-L9338MD/TR
- Manufacturer STMicroelectronics
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO20 (12+4+4)
- Released Date Aug 26, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
E-L9338MD/TR Details
-
Manufacturer Part Number:
E-L9338MD/TR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOP, SOP20,.4
-
Pin Count:
20
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
18 Weeks
E-L9338MD/TR Frequently Asked Questions (FAQs)
-
STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
-
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
-
STMicroelectronics recommends soldering at a temperature of 260°C (500°F) for 10-15 seconds, with a peak temperature not exceeding 280°C (536°F) to prevent damage to the device.
-
Yes, the E-L9338MD/TR is designed to withstand vibrations up to 10g, but it's essential to ensure proper mounting and mechanical fixation to prevent damage or dislodging of the component.
-
To troubleshoot issues with the E-L9338MD/TR, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output connections, and check for any signs of overheating or physical damage. If the issue persists, consult the datasheet and application notes or contact STMicroelectronics support for further assistance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
E-L9338MD/TR Overview

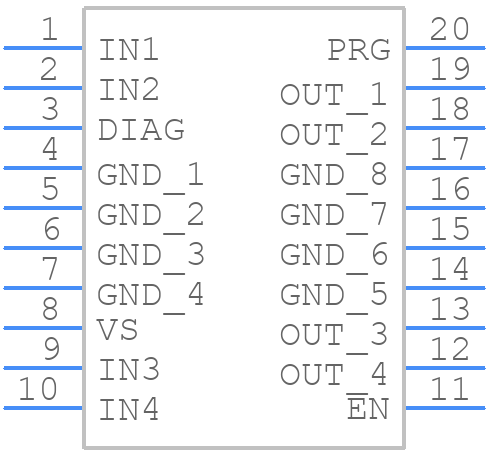

Use the download button to access the E-L9338MD/TR schematic symbol, PCB footprint, and 3D model.
