- Part Number E-UC3843BN
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - Minidip
- Released Date Jan 12, 2017
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
E-UC3843BN Details
-
Manufacturer Part Number:
E-UC3843BN
-
Brand Name:
STMicroelectronics
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
MINI, DIP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING CONTROLLER
E-UC3843BN Frequently Asked Questions (FAQs)
-
The maximum operating frequency of the E-UC3843BN is 500 kHz.
-
To ensure stability in the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage should be decoupled with a 10nF capacitor.
-
The soft-start pin (SS) is used to control the output voltage rise time during startup. It can be connected to a capacitor to ground to set the soft-start time.
-
The maximum output current of the E-UC3843BN can be calculated using the formula: Iout_max = (Vin - Vout) / (Rds(on) * Rl), where Vin is the input voltage, Vout is the output voltage, Rds(on) is the on-state resistance of the internal switch, and Rl is the load resistance.
-
It is recommended to use a multi-layer PCB with a solid ground plane and to place the E-UC3843BN near the input capacitors. Thermal management is critical, and it is recommended to use a heat sink with a thermal resistance of less than 10°C/W.
Trust Checks
Community Provided
System Verified
Community Approved
E-UC3843BN Overview

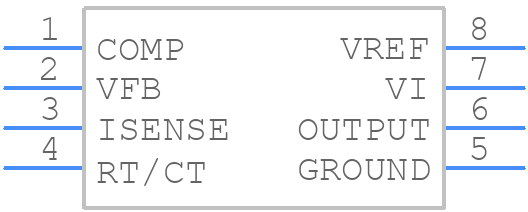

Use the download button to access the E-UC3843BN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E-UC3,
or try a keyword search, such as Switching Regulator or Controllers
