E105SF1AQE - LITTELFUSE

Description: Switch Toggle Mom OFF Mom SPDT Round Lever PC Pins 7.5A 250VAC 28VDC PC Mount with Bracket

Download E105SF1AQE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this E105SF1AQE model

Email notifications will be applied after download.

Send part feedback

Symbol

E105SF1AQE - LITTELFUSE - PCB symbol

PCB Footprints

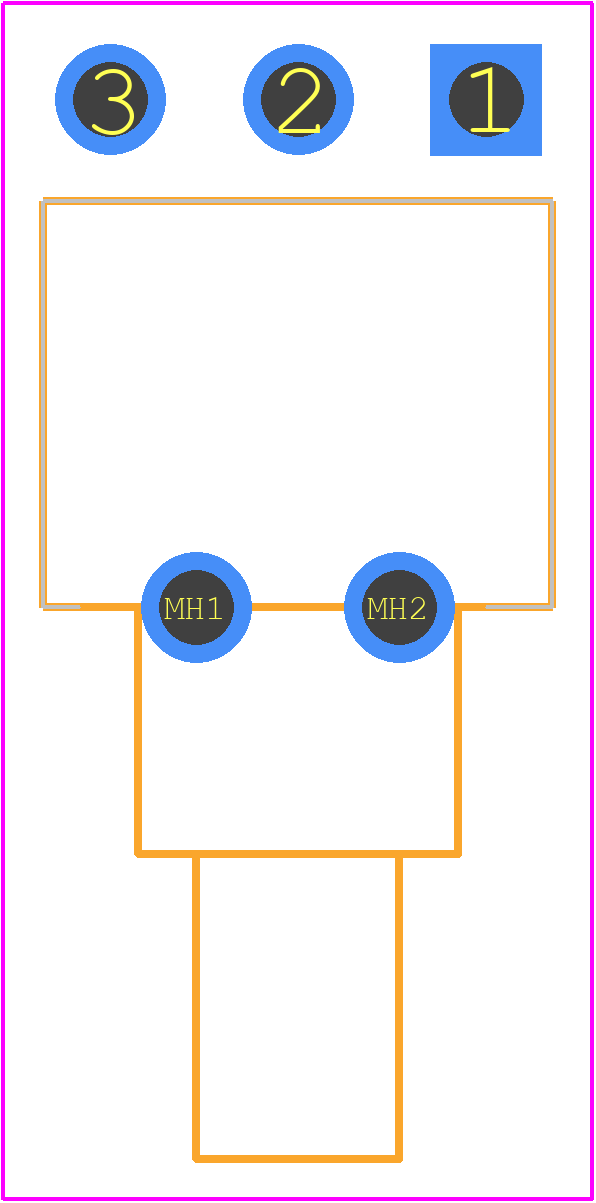

E105SF1AQE - LITTELFUSE PCB footprint - Other - Other - E105SF1AQE-5

Datasheet Download Datasheet
Stock & Prices Price & Stock for E105SF1AQE
Part Number E105SF1AQE
Manufacturer LITTELFUSE
Pin Count 5
Part Category Switch
Package Category Other
Footprint Name Other - E105SF1AQE-5
Released Date Aug 18, 2019
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

E105SF1AQE Details

Manufacturer Part Number:
E105SF1AQE
Manufacturer:
Littelfuse Inc
