Delta Electronics provides a reference design guide for the E35SE12013PDPG, which includes recommended PCB layout and thermal design considerations. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
The selection of input and output capacitors depends on various factors, including the operating frequency, output voltage, and ripple current. Delta Electronics recommends using capacitors with low ESR, high ripple current rating, and suitable voltage rating. Consult the datasheet and application notes for specific guidance.
The E35SE12013PDPG is designed to meet various EMC standards, including EN 55022, EN 55024, and FCC Part 15. However, the system designer must ensure that the power supply is properly installed, configured, and shielded to meet the specific EMC requirements of the end application.
The E35SE12013PDPG has built-in OVP and UVP circuits, but additional external protection circuits may be required depending on the specific application requirements. Consult the datasheet and application notes for guidance on implementing OVP and UVP circuits.
The E35SE12013PDPG has an operating temperature range of -40°C to +85°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. Consult the datasheet and application notes for guidance on temperature derating and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
E35SE12013PDPG Overview

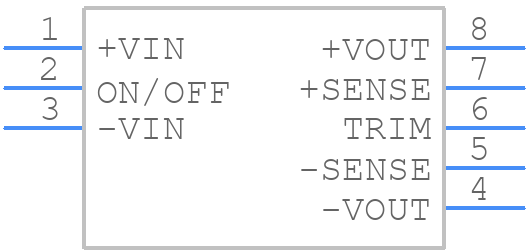

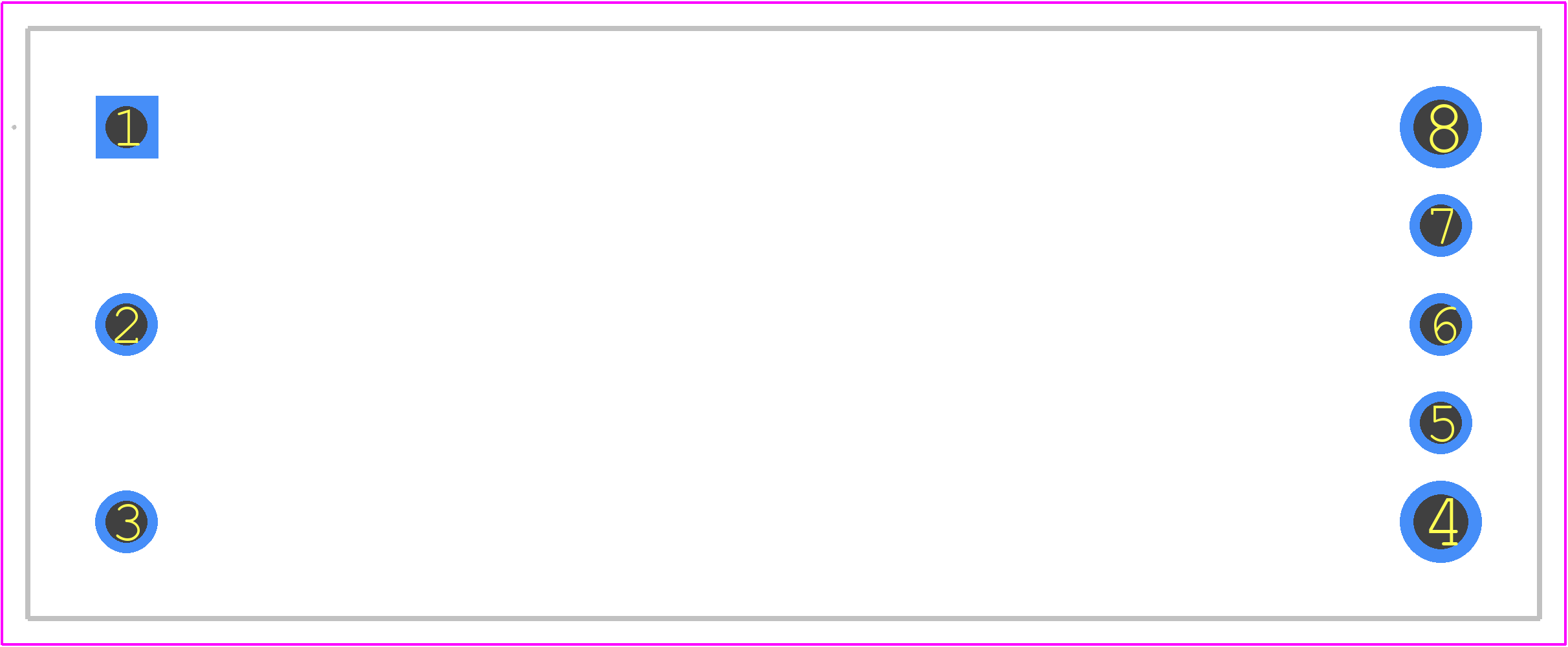

Use the download button to access the E35SE12013PDPG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E35SE,
or try a keyword search, such as Power Supply Modules
