The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal plate or a heat sink, and ensuring good airflow around the component. The PCB should also be designed to minimize thermal resistance and ensure good heat dissipation.
To ensure reliable start-up and shutdown of the converter, it is recommended to add a soft-start circuit to limit the inrush current, and to use a voltage supervisor to monitor the input voltage and ensure that the converter is enabled only when the input voltage is within the specified range.
When handling the converter, it is essential to take precautions to prevent damage from electrostatic discharge (ESD). This includes using an ESD wrist strap or mat, handling the component by the body rather than the pins, and storing the component in an anti-static bag or container.
To troubleshoot issues with the converter, it is recommended to use a multimeter to measure the input and output voltages, and to check the temperature of the component using an infrared thermometer. The datasheet and application notes should also be consulted to ensure that the converter is being used within its specified operating conditions.
When using the converter in a high-reliability or high-availability application, it is essential to consider the component's MTBF (mean time between failures) and MTTR (mean time to repair) ratings, as well as its ability to operate in harsh environments. The converter's design should also be fault-tolerant, with built-in redundancy and error detection and correction mechanisms.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
E36SC05025NRFA Overview

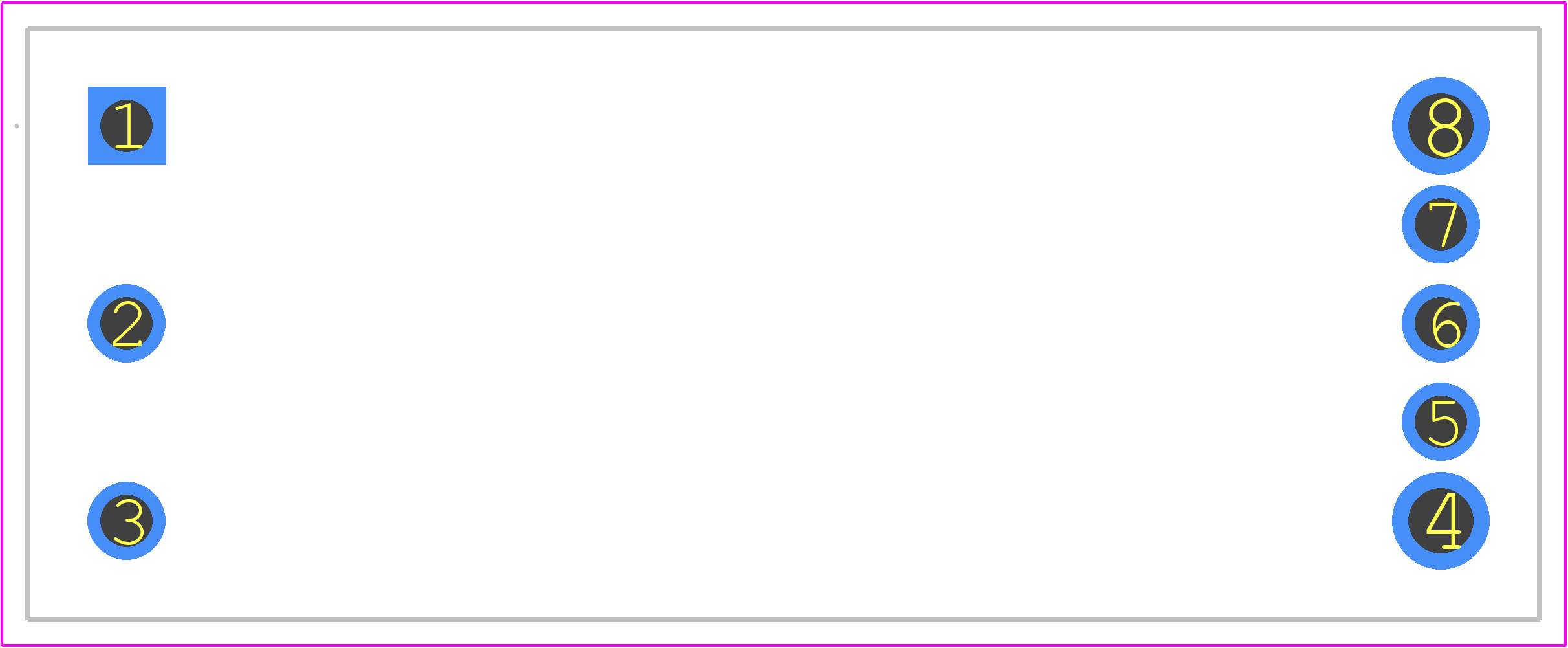

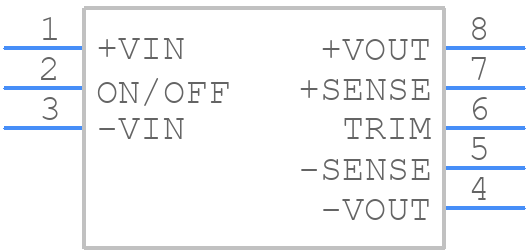

Use the download button to access the E36SC05025NRFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E36SC,
or try a keyword search, such as Power Supply Modules
