For optimal performance, it's recommended to follow the datasheet's recommended PCB layout and thermal management guidelines. Ensure a minimum of 1 oz copper thickness, use a 4-layer PCB with a dedicated ground plane, and implement a heat sink with a thermal interface material. This will help reduce thermal resistance and ensure reliable operation.
To ensure EMC compliance, follow the datasheet's guidelines for PCB layout, component placement, and shielding. Additionally, consider using a metal enclosure, implementing EMI filters, and ensuring proper grounding and bonding. It's also recommended to perform EMC testing to ensure compliance with relevant standards.
Derating curves are not explicitly provided in the datasheet, but they can be obtained by contacting Delta Electronics Inc directly. Derating curves are essential for ensuring the component operates within safe operating conditions, especially in high-temperature or high-stress applications. Be sure to request the derating curves and factor them into your design to ensure reliable operation.
While the E36SC12009NRFA is a high-quality component, it's essential to evaluate its suitability for high-reliability or safety-critical applications. Review the component's reliability data, failure modes, and fault tolerance. Additionally, consider implementing redundant systems, error detection, and correction mechanisms to ensure the required level of reliability and safety.
To prevent damage, store the E36SC12009NRFA in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the component by the body, avoiding touching the pins or electrical contacts. Use anti-static wrist straps, mats, or bags to prevent electrostatic discharge damage during handling and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
E36SC12009NRFA Overview

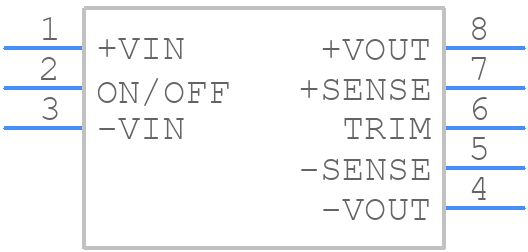

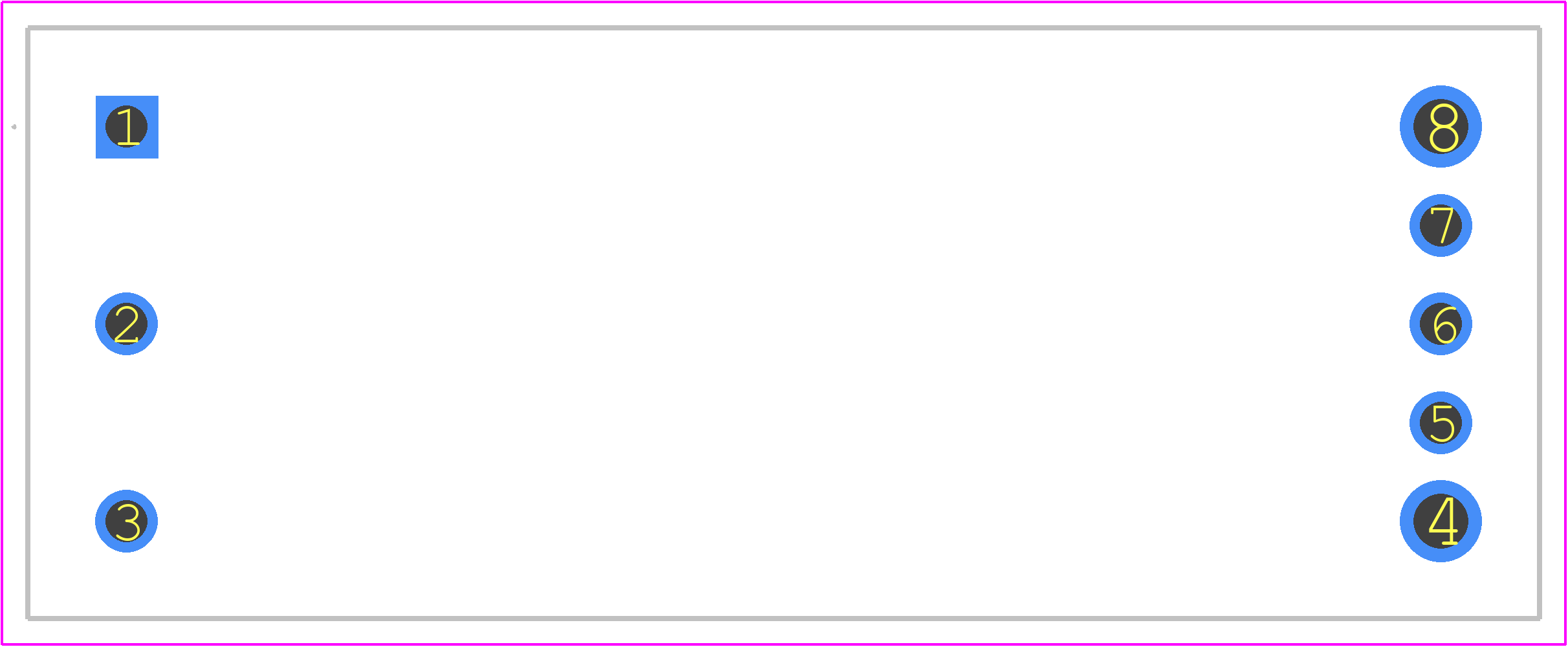

Use the download button to access the E36SC12009NRFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E36SC,
or try a keyword search, such as Power Supply Modules
