The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's application notes.
Yes, the E37-VT6330-1 is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
The MTBF of the E37-VT6330-1 is approximately 550,000 hours, calculated according to MIL-HDBK-217F.
Yes, the E37-VT6330-1 is designed to meet the requirements for use in Class I, Division 2 hazardous locations, but additional certification may be required.
The E37-VT6330-1 can operate up to an altitude of 10,000 feet (3,048 meters) without derating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
E37-VT6330-1 Overview

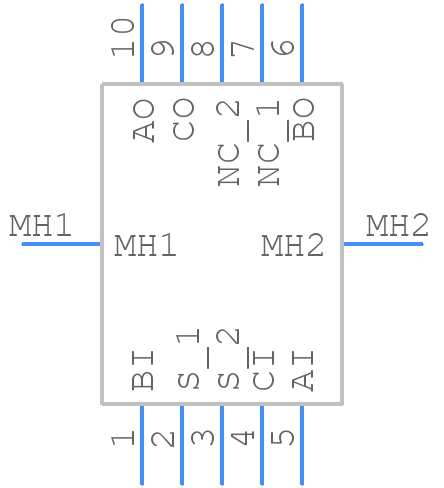

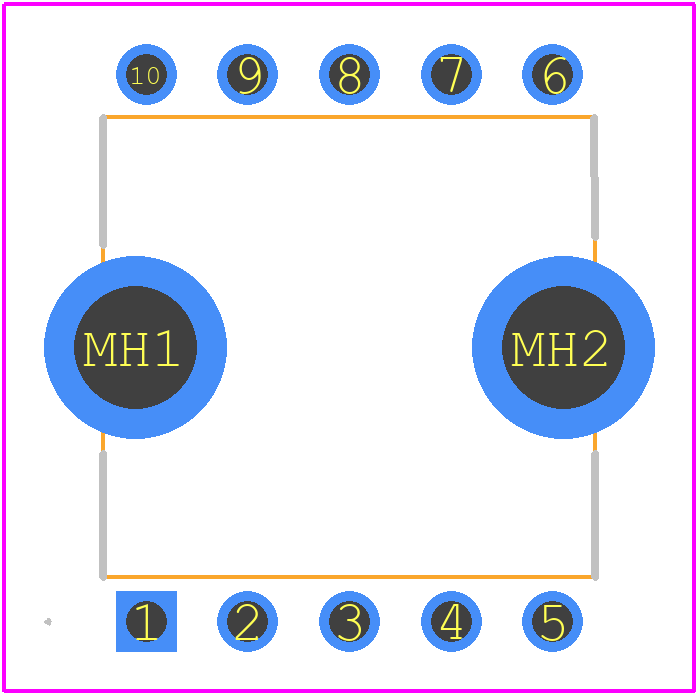

Use the download button to access the E37-VT6330-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E37-V,
or try a keyword search, such as Optical Position Encoders
