The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal derating guidelines.
To ensure EMC compliance, follow proper PCB layout and grounding techniques, use shielding if necessary, and ensure that the module is installed in a metal enclosure. Additionally, follow the guidelines outlined in the datasheet for input and output filtering.
The maximum allowable capacitance for the input and output capacitors is not explicitly stated in the datasheet. However, as a general guideline, it is recommended to use capacitors with a capacitance value of 10-22 μF for the input and 10-47 μF for the output, with a voltage rating of at least 1.5 times the maximum input voltage.
While the E48SC12010NRFA is a high-quality module, it is essential to evaluate its suitability for high-reliability or safety-critical applications. Review the module's reliability data, perform thorough testing, and consider implementing redundant systems or error correction mechanisms to ensure the required level of reliability and safety.
To troubleshoot common issues, start by verifying the input voltage, output load, and ambient temperature. Check the module's thermal management, ensure proper airflow, and inspect the PCB layout for any signs of damage or wear. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
E48SC12010NRFA Overview

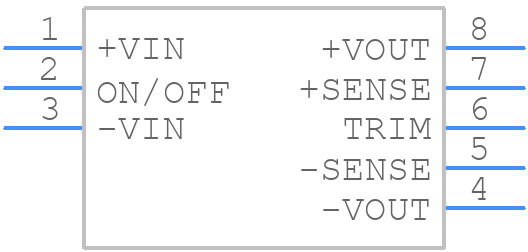

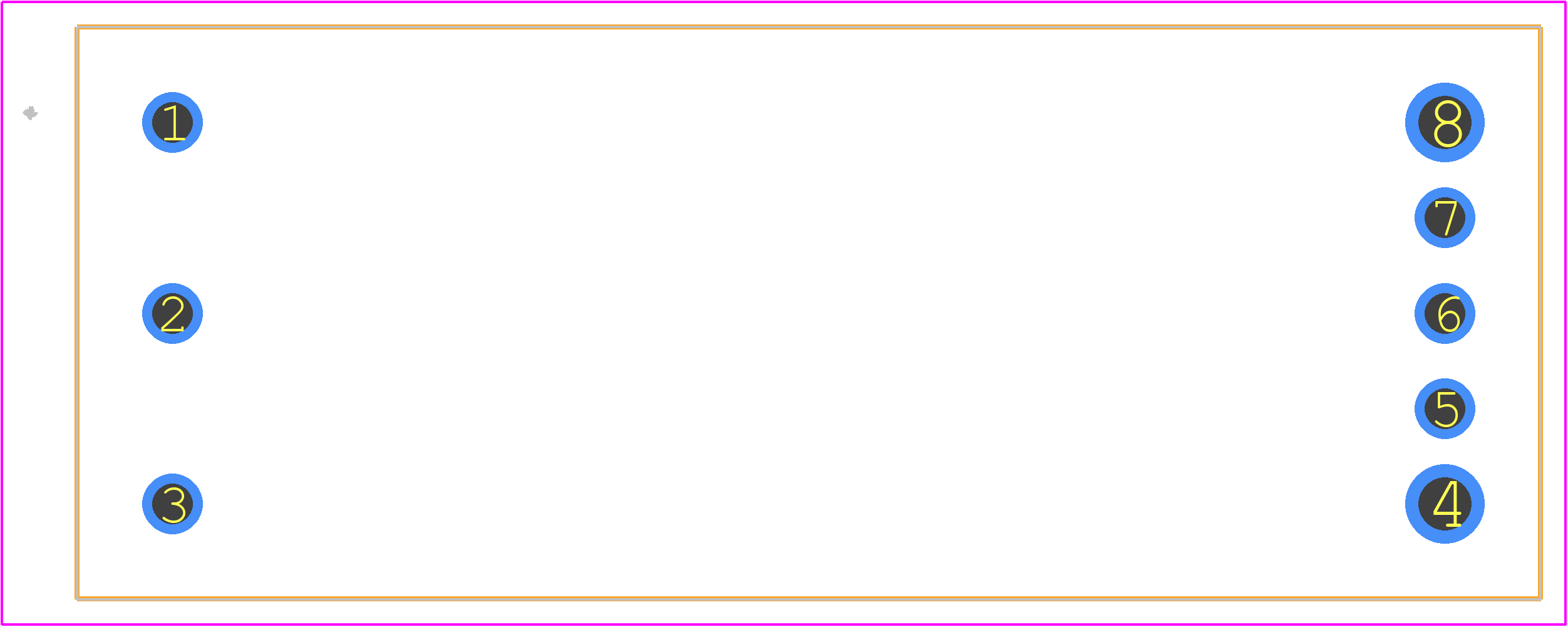

Use the download button to access the E48SC12010NRFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E48SC,
or try a keyword search, such as Power Supply Modules
