The recommended PCB layout for optimal thermal performance involves placing the DC-DC converter near a metal plate or a heat sink, and ensuring good airflow around the component. The PCB should also have sufficient copper thickness and thermal vias to dissipate heat efficiently.
To ensure EMC, it is recommended to use a metal shield around the DC-DC converter, and to keep the input and output cables as short as possible. Additionally, the PCB should be designed with EMC in mind, using techniques such as grounding, shielding, and filtering to minimize electromagnetic interference.
The maximum allowable capacitance for the output filter capacitor is 220uF. Exceeding this value may cause instability or oscillation in the DC-DC converter.
To troubleshoot issues with the DC-DC converter, first check the input voltage and current, and ensure that the output voltage is within the specified range. Check for any signs of overheating, such as excessive temperature or burning smells. Use an oscilloscope to check for any oscillations or noise on the output voltage. If the issue persists, consult the datasheet or contact Delta Electronics Inc for further support.
The E48SC12030NRFH is a commercial-grade DC-DC converter, and may not be suitable for high-reliability or safety-critical applications. For such applications, it is recommended to use a DC-DC converter that is specifically designed and certified for high-reliability or safety-critical use, such as those with MIL-STD-810 or IEC 60601-1 certification.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
E48SC12030NRFH Overview

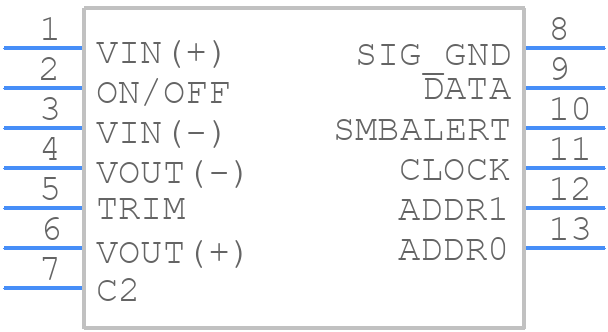

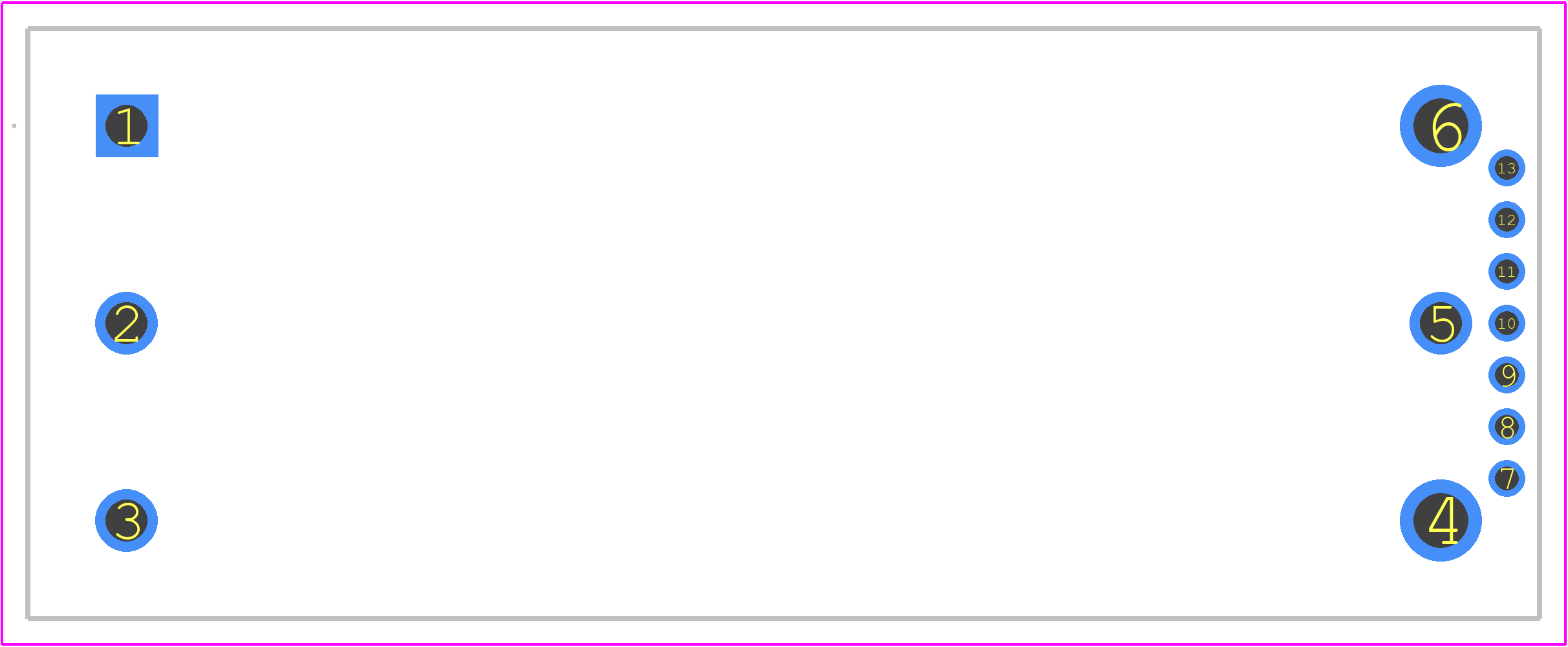

Use the download button to access the E48SC12030NRFH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E48SC,
or try a keyword search, such as Power Supply Modules
