E48SK12038NRDH footprint, schematic symbol and 3D model by Delta Electronics

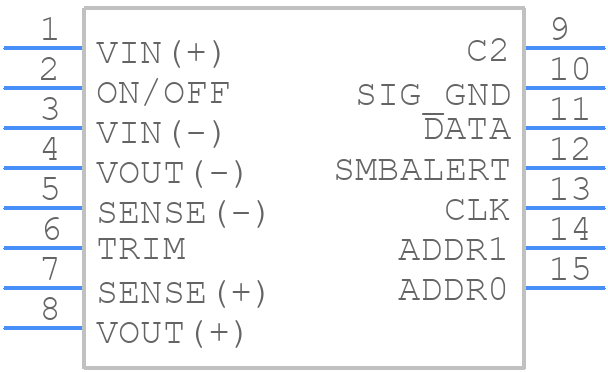

Symbol

click to zoom

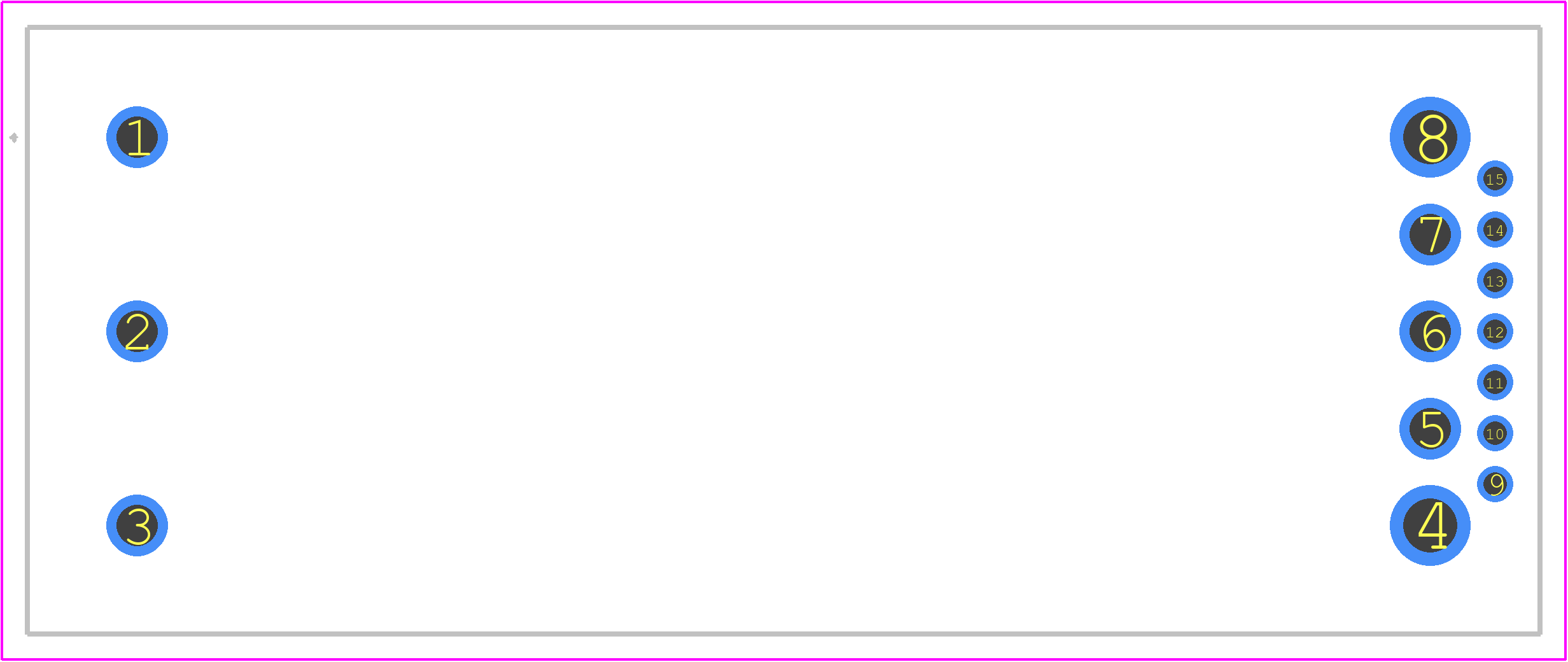

PCB Footprints

E48SK12038NRDH - Delta Electronics PCB footprint - Other - Other - E48SK12038NRDH-1

click to zoom

3D Models

E48SK12038NRDH - Delta Electronics - 3D model - Other - E48SK12038NRDH-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for E48SK12038NRDH
Part Number E48SK12038NRDH
Manufacturer Delta Electronics
Pin Count 15
Part Category Power Supply
Package Category Other
Footprint Name Other - E48SK12038NRDH-1
Released Date Apr 16, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

E48SK12038NRDH Details

Manufacturer Part Number:
E48SK12038NRDH
Part Life Cycle Code:
Active
Package Description:
1/8 BRICK PACKAGE-15
ECCN Code:
EAR99
Manufacturer:
Delta Electronics Inc
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CSA,EN,IEC,UL
Efficiency (Main Output):
96%
Input Voltage-Max:
75 V
Input Voltage-Min:
36 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XDMA-P15
Length:
58.4 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
37.5 A
Output Voltage-Max:
13.2 V
Output Voltage-Min:
8 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Equivalence Code:
MODULE,15LEAD(UNSPEC)
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER CURRENT; OVER VOLTAGE; OVER TEMPERATURE
Ripple Voltage (Main Out):
0.017675 Vrms
Screening Level:
EN/IEC/UL 62368-1
Seated Height-Max:
12.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
450 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.12 s
Width:
22.8 mm

E48SK12038NRDH Frequently Asked Questions (FAQs)

The thermal resistance (RθJC) of the E48SK12038NRDH is typically around 1.5°C/W, but it's recommended to consult the datasheet or contact Delta Electronics Inc for the most up-to-date and accurate information.
The E48SK12038NRDH is designed to operate in a humidity range of 20% to 80% RH, but it's not recommended for use in high-humidity environments above 80% RH. If you need to operate in high-humidity conditions, consider using a conformal coating or consulting with Delta Electronics Inc for guidance.
The recommended PCB layout and thermal management for the E48SK12038NRDH involve using a multi-layer PCB with a solid ground plane, placing thermal vias under the device, and using a heat sink or thermal pad to dissipate heat. Consult the datasheet or application notes for more detailed guidance.
Yes, the E48SK12038NRDH is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable operation and prevent damage to the device.
The typical start-up time for the E48SK12038NRDH is around 10-20 ms, but this can vary depending on the specific application and operating conditions. Consult the datasheet or contact Delta Electronics Inc for more information.

Trust Checks

Expert Contribution

System Verified

Community Approved

E48SK12038NRDH Overview

Use the download button to access the E48SK12038NRDH schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like E48SK, or try a keyword search, such as Power Supply Modules
