E54SJ12033NRFH - Delta Electronics

Description: Isolated DC/DC Converters - Through Hole 40-60V 11.8V 33.9A Neg .17pin Baseplate

Download E54SJ12033NRFH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
E54SJ12033NRFH - Delta Electronics - PCB symbol
click to zoom
PCB Footprints

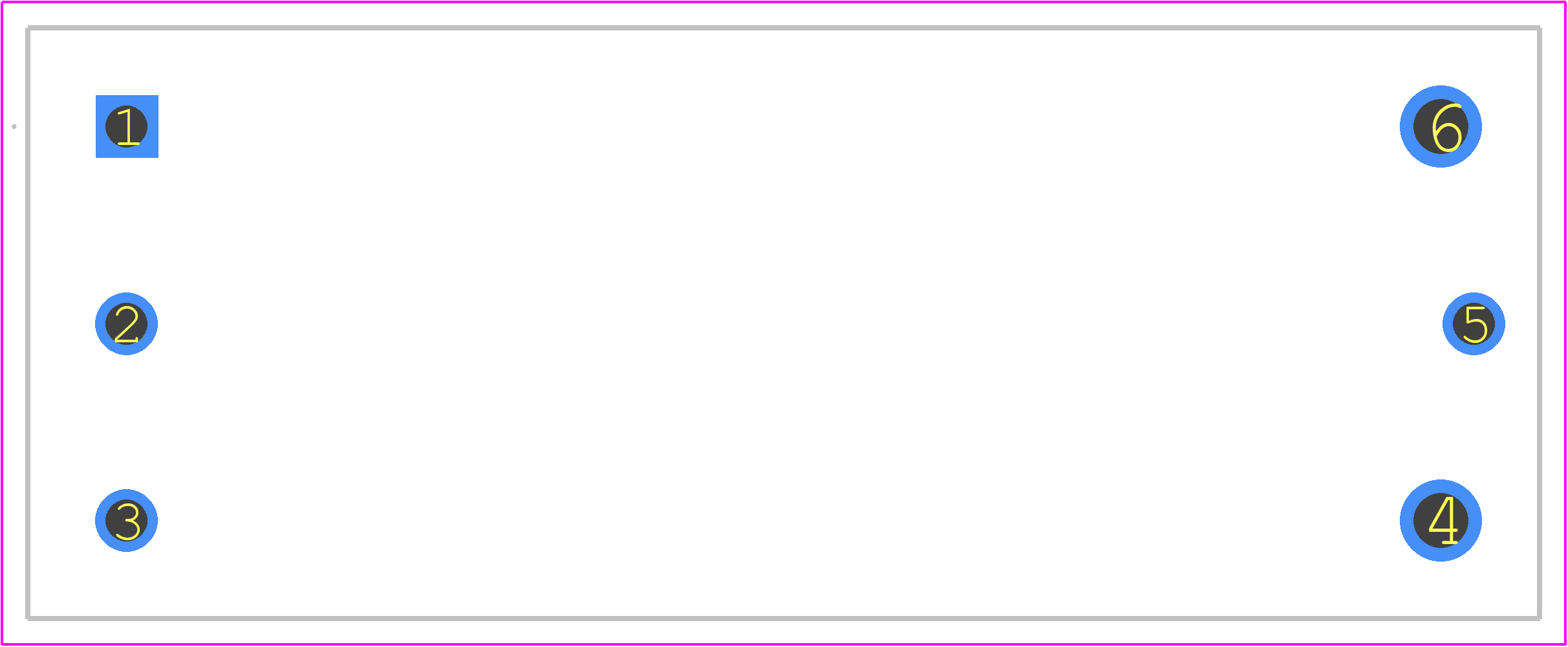

E54SJ12033NRFH - Delta Electronics PCB footprint - Other - Other - 58.4x22.8x14.5mm
click to zoom
3D Models
E54SJ12033NRFH - Delta Electronics - 3D model - Other - 58.4x22.8x14.5mm
click to zoom

E54SJ12033NRFH Details

  • Manufacturer Part Number:

    E54SJ12033NRFH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-12-13

  • Manufacturer:

    Delta Electronics Inc

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

E54SJ12033NRFH Overview

Use the download button to access the E54SJ12033NRFH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E54SJ, or try a keyword search, such as Power Supply Modules
