E6S20D-40MT5-Z - Rosenberger

Description: right angle plug PCB w. housing RF Adapters

Download E6S20D-40MT5-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

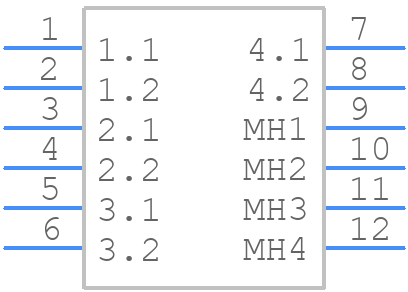

E6S20D-40MT5-Z - Rosenberger - PCB symbol
click to zoom
PCB Footprints

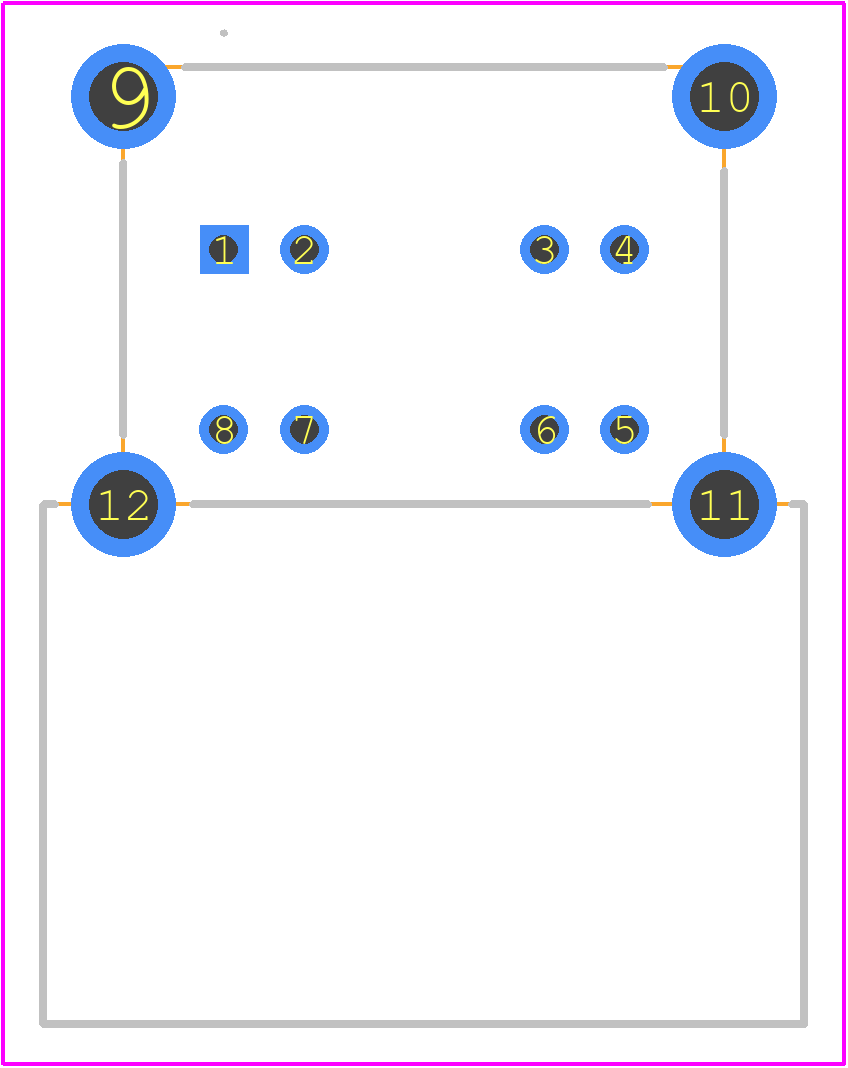

E6S20D-40MT5-Z - Rosenberger PCB footprint - Other - Other - E6S20D-40MT5-Z-1
click to zoom
3D Models
E6S20D-40MT5-Z - Rosenberger - 3D model - Other - E6S20D-40MT5-Z-1
click to zoom

E6S20D-40MT5-Z Details

  • Manufacturer Part Number:

    E6S20D-40MT5-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Rosenberger

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED; RATED CURRENT(POWER): 1.5A

  • Body Breadth:

    0.752 inch

  • Body Depth:

    0.942 inch

  • Body Length:

    0.748 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    COAX

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER/POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

E6S20D-40MT5-Z Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm (5.3 in-lbs) for the E6S20D-40MT5-Z connector, as specified by Rosenberger.
  • Yes, the E6S20D-40MT5-Z connector is suitable for outdoor use, as it is designed to meet the IP67 rating for environmental protection.
  • No, the E6S20D-40MT5-Z connector is not designed for high-power applications. It is intended for use in low-power, high-frequency applications such as antennas, filters, and switches.
  • Yes, the E6S20D-40MT5-Z connector is compatible with other Rosenberger connectors that have the same interface and mating dimensions.
  • The operating temperature range for the E6S20D-40MT5-Z connector is -40°C to +85°C, as specified by Rosenberger.
