EA LED55X31-R - Display Visions

Description: DOGM GRAPHIC SERIES 132X32 DOTS LED Backlighting Red LED Backlight For DOG-M Series

Download EA LED55X31-R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EA LED55X31-R model

Email notifications will be applied after download.

Send part feedback

Symbol

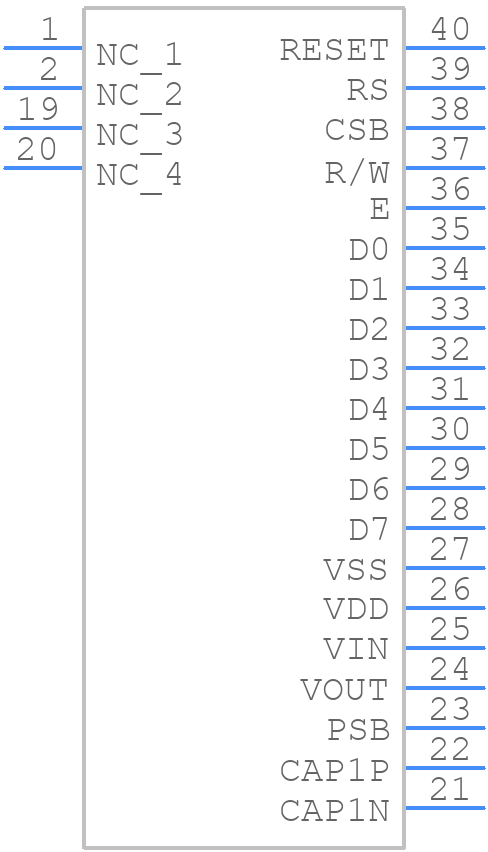

EA LED55X31-R - Display Visions - PCB symbol

PCB Footprints

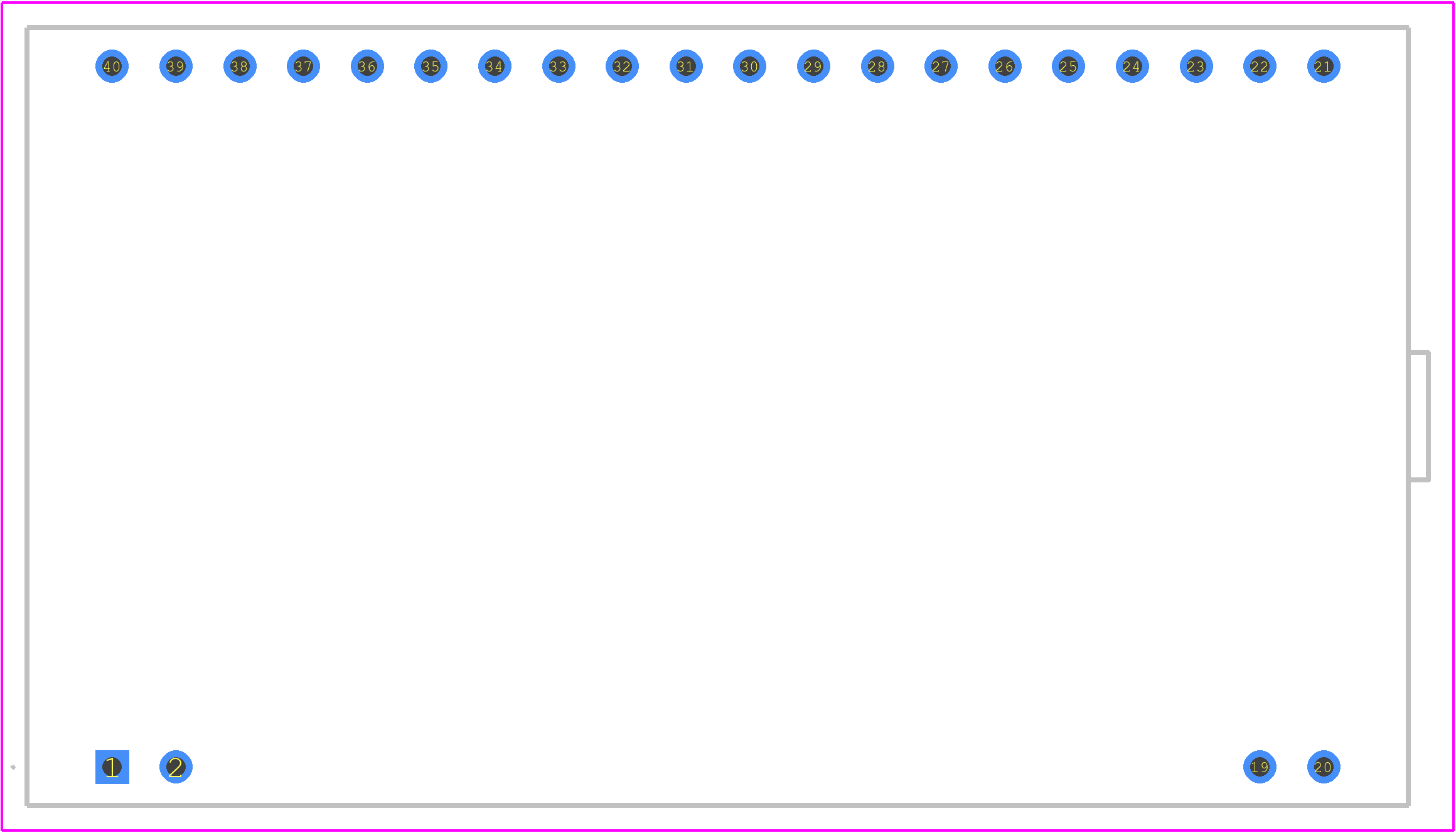

EA LED55X31-R - Display Visions PCB footprint - Other - Other - EA LED55X31-R-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for EA LED55X31-R
Part Number EA LED55X31-R
Manufacturer Display Visions
Pin Count 24
Part Category Display
Package Category Other
Footprint Name Other - EA LED55X31-R-4
Released Date May 15, 2023
Last Modified Date May 16, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

EA LED55X31-R Details

Manufacturer Part Number:
EA LED55X31-R
Manufacturer:
Display Visions (LEDs)

Trust Checks

Community Provided

System Verified

Community Approved

EA LED55X31-R Overview

Use the download button to access the EA LED55X31-R schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EA LE, or try a keyword search, such as LCD Displays
