- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for EA2-5TNAG
- Part Number EA2-5TNAG
- Manufacturer NEC
- Pin Count 10
- Part Category Connector
- Package Category Other
- Footprint Name Other - EA2-5TNAG-1
- Released Date May 7, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EA2-5TNAG Details
-
Manufacturer Part Number:
EA2-5TNAG
-
Manufacturer:
NEC Electronics America Inc
Trust Checks
Expert Contribution
System Verified
Community Approved
EA2-5TNAG Overview

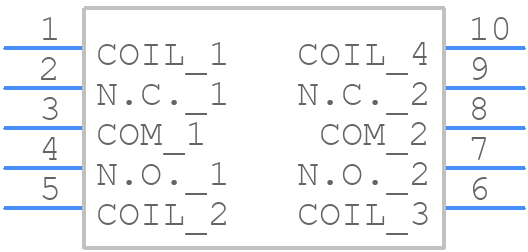

Use the download button to access the EA2-5TNAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EA2-5,
or try a keyword search, such as Power/Signal Relays
