EAAPMST3923A2 - Everlight

Description: Optical Sensor Ambient 850nm I2C 8-SMD Module -1.7V to 3.6V supply for I2C interface -2.3V to 3.6V sensor power supply -40°C to 85°C ambient temperature

Download EAAPMST3923A2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

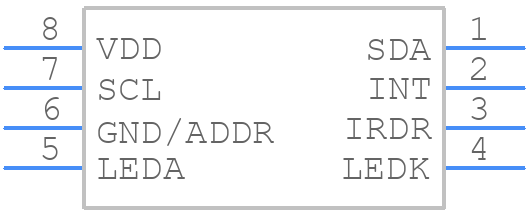

EAAPMST3923A2 - Everlight - PCB symbol
click to zoom
PCB Footprints
EAAPMST3923A2 - Everlight PCB footprint - Other - Other - 8-SMD_2025
click to zoom
3D Models
EAAPMST3923A2 - Everlight - 3D model - Other - 8-SMD_2025
click to zoom

EAAPMST3923A2 Details

  • Manufacturer Part Number:

    EAAPMST3923A2

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-12

  • ECCN Code:

    EAR99

  • Manufacturer:

    Everlight Electronics Co Ltd

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N12

  • Length:

    3.94 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC12,.09,38

  • Package Shape:

    RECTANGULAR

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.97 mm

  • Terminal Position:

    DUAL

  • Width:

    2.36 mm

EAAPMST3923A2 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for EAAPMST3923A2 is -40°C to 100°C.
  • Yes, the EAAPMST3923A2 is lead-free and compliant with the European Union's Restriction of Hazardous Substances (RoHS) directive.
  • The typical junction-to-ambient thermal resistance of the EAAPMST3923A2 is around 150°C/W.
  • Yes, the EAAPMST3923A2 is suitable for high-reliability applications, such as automotive, industrial, and medical devices, due to its high-quality manufacturing process and rigorous testing.
  • The recommended soldering temperature profile for the EAAPMST3923A2 is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EAAPMST3923A2 Overview

Use the download button to access the EAAPMST3923A2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EAAPM, or try a keyword search, such as Other Signal Circuits
