- Part Number EAC333
- Manufacturer Switchcraft
- Pin Count 5
- Part Category Connector
- Package Category Other

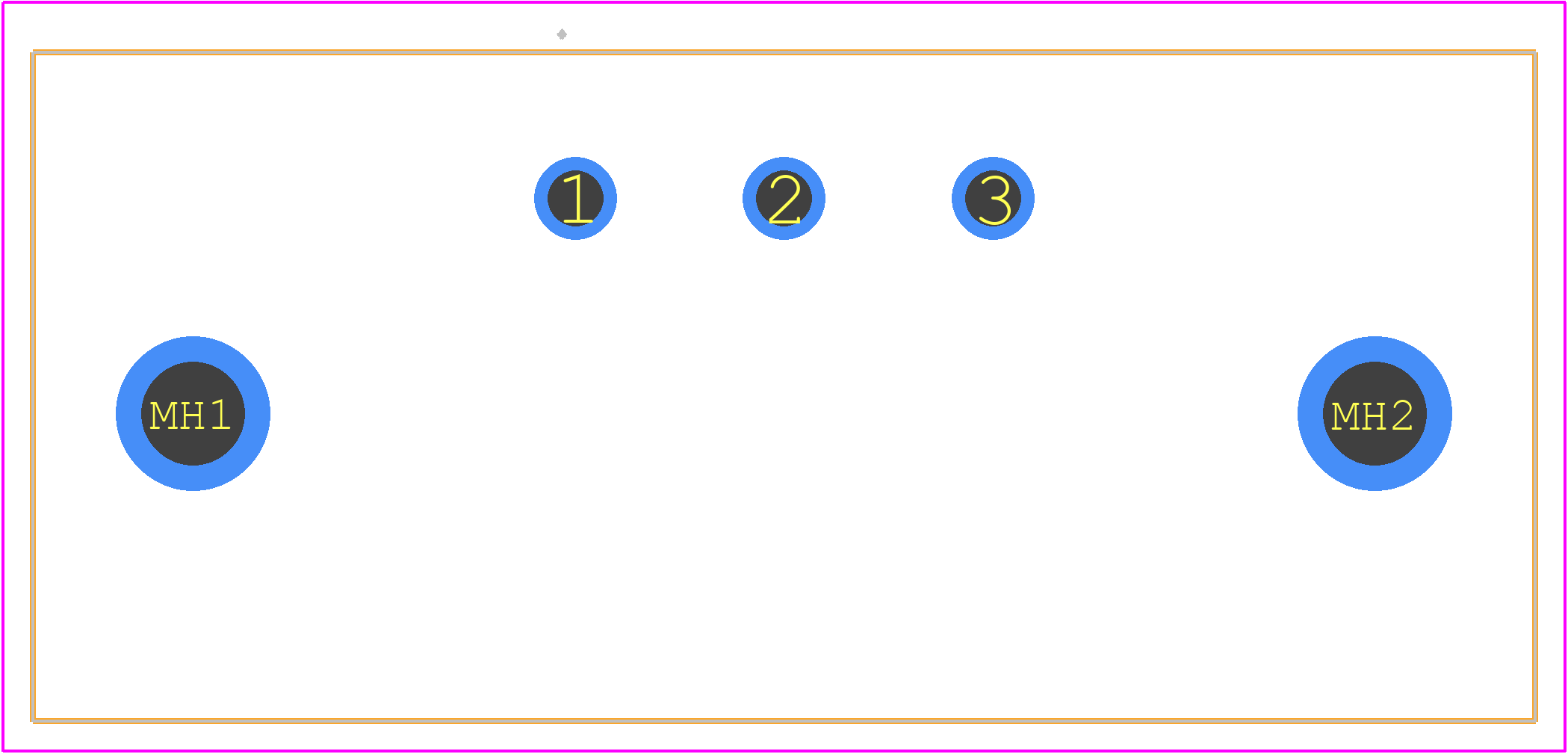

- Footprint Name Other - EAC333-2
- Released Date Feb 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EAC333 Details
-
Manufacturer Part Number:
EAC333
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Switchcraft Conxall
-
YTEOL:
8
-
Additional Feature:
STANDARD: CSA; UL; VDE
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
MAINS POWER CONNECTOR
EAC333 Frequently Asked Questions (FAQs)
-
The recommended torque value for the EAC333 connector is 10-12 in-lbs (1.1-1.4 Nm) for the coupling nut and 5-7 in-lbs (0.6-0.8 Nm) for the backshell.
-
Yes, the EAC333 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
-
Yes, the EAC333 connector is designed to operate in harsh environments, including extreme temperatures (-55°C to 125°C), humidity, and exposure to fluids and chemicals.
-
The EAC333 connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
-
Yes, the EAC333 connector is designed to support high-speed data transmission rates up to 10 Gbps, making it suitable for applications such as Ethernet and other high-speed protocols.
