EAPL4508RGBA0 - Everlight

Description: LED Tri-Color Blue/Green/Red 468nm/518nm/632nm T/R

Download EAPL4508RGBA0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

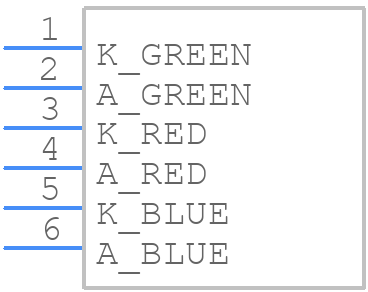

EAPL4508RGBA0 - Everlight - PCB symbol
click to zoom
PCB Footprints
EAPL4508RGBA0 - Everlight PCB footprint - Other - Other - EAPL4508RGBA0
click to zoom
3D Models
EAPL4508RGBA0 - Everlight - 3D model - Other - EAPL4508RGBA0
click to zoom

EAPL4508RGBA0 Details

  • Manufacturer Part Number:

    EAPL4508RGBA0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    6

  • Additional Feature:

    AEC-Q101

  • Color:

    BRILLIANT RED/BRILLIANT GREEN/BLUE

  • Configuration:

    SEPARATE, 3 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.6 V

  • Lens Type:

    WATER CLEAR COLORLESS

  • Luminous Intensity-Nom:

    500.0/900.0/325.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED

  • Overall Height:

    0.8 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    632/518/468 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    RECTANGULAR

  • Size:

    3.4 mm

  • Surface Mount:

    YES

  • Viewing Angle:

    120 deg

EAPL4508RGBA0 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the EAPL4508RGBA0 is -30°C to 40°C.
  • Yes, the EAPL4508RGBA0 is suitable for outdoor applications, but it's recommended to use a suitable encapsulant or coating to protect it from moisture and UV radiation.
  • The maximum forward current that can be applied to the EAPL4508RGBA0 is 30mA, but it's recommended to operate it at a lower current to ensure reliability and longevity.
  • Yes, the EAPL4508RGBA0 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The typical viewing angle of the EAPL4508RGBA0 is 120°, but this can vary depending on the specific application and optical design.
