EAST1410RGBW01 - Everlight

Description: Standard LEDs - SMD RedGreenBlueWhite White Diffused Lens

Download EAST1410RGBW01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

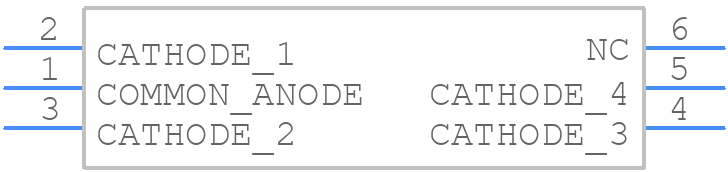

EAST1410RGBW01 - Everlight - PCB symbol
click to zoom
PCB Footprints
EAST1410RGBW01 - Everlight PCB footprint - Other - Other - EAST1410RGBW01-2
click to zoom
3D Models
EAST1410RGBW01 - Everlight - 3D model - Other - EAST1410RGBW01-2
click to zoom

EAST1410RGBW01 Details

  • Manufacturer Part Number:

    EAST1410RGBW01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Everlight Electronics Co Ltd

  • Optoelectronic Device Type:

    MULTIPLE COLOR LED

EAST1410RGBW01 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the EAST1410RGBW01 is -40°C to 85°C.
  • To avoid overheating, ensure that the LEDs are driven within the recommended current range (350mA per channel) and that the module is mounted on a suitable heat sink or PCB with good thermal conductivity.
  • The maximum allowable voltage for the EAST1410RGBW01 is 5.5V. Exceeding this voltage may damage the LEDs or reduce their lifespan.
  • To avoid damage during soldering, use a soldering iron with a temperature below 260°C and avoid applying excessive force or bending the module. Also, ensure that the module is properly secured to the PCB to prevent movement during soldering.
  • The recommended storage condition for the EAST1410RGBW01 is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%.
