EAST1410RGBW02 - Everlight

Description: SIGNAGE RGBW PCB TOP VIEW SMD LE

Download EAST1410RGBW02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

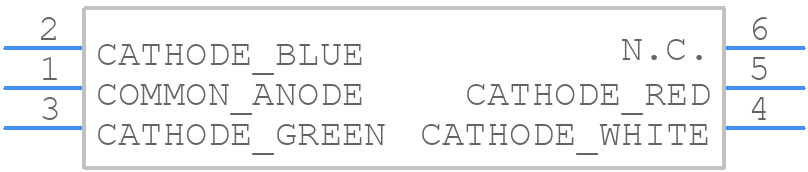

EAST1410RGBW02 - Everlight - PCB symbol
click to zoom
PCB Footprints
EAST1410RGBW02 - Everlight PCB footprint - Other - Other - EAST1410RGBW02-2
click to zoom
3D Models
EAST1410RGBW02 - Everlight - 3D model - Other - EAST1410RGBW02-2
click to zoom

EAST1410RGBW02 Details

  • Manufacturer Part Number:

    EAST1410RGBW02

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Everlight Electronics Co Ltd

  • Optoelectronic Device Type:

    MULTIPLE COLOR LED

EAST1410RGBW02 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the EAST1410RGBW02 is -40°C to 85°C.
  • To avoid overheating, ensure that the LEDs are driven with a current within the recommended range (typically 20mA per channel), and provide adequate heat sinking and thermal management.
  • The maximum allowable voltage for the EAST1410RGBW02 is 5.5V.
  • While the EAST1410RGBW02 is not specifically designed for outdoor use, it can be used in outdoor applications if properly sealed and protected from environmental factors such as moisture, UV, and extreme temperatures.
  • To ensure color consistency, use modules from the same production batch, and consider binning and sorting the modules by color and brightness.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EAST1410RGBW02 Overview

Use the download button to access the EAST1410RGBW02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EAST1, or try a keyword search, such as Other Optoelectronics
